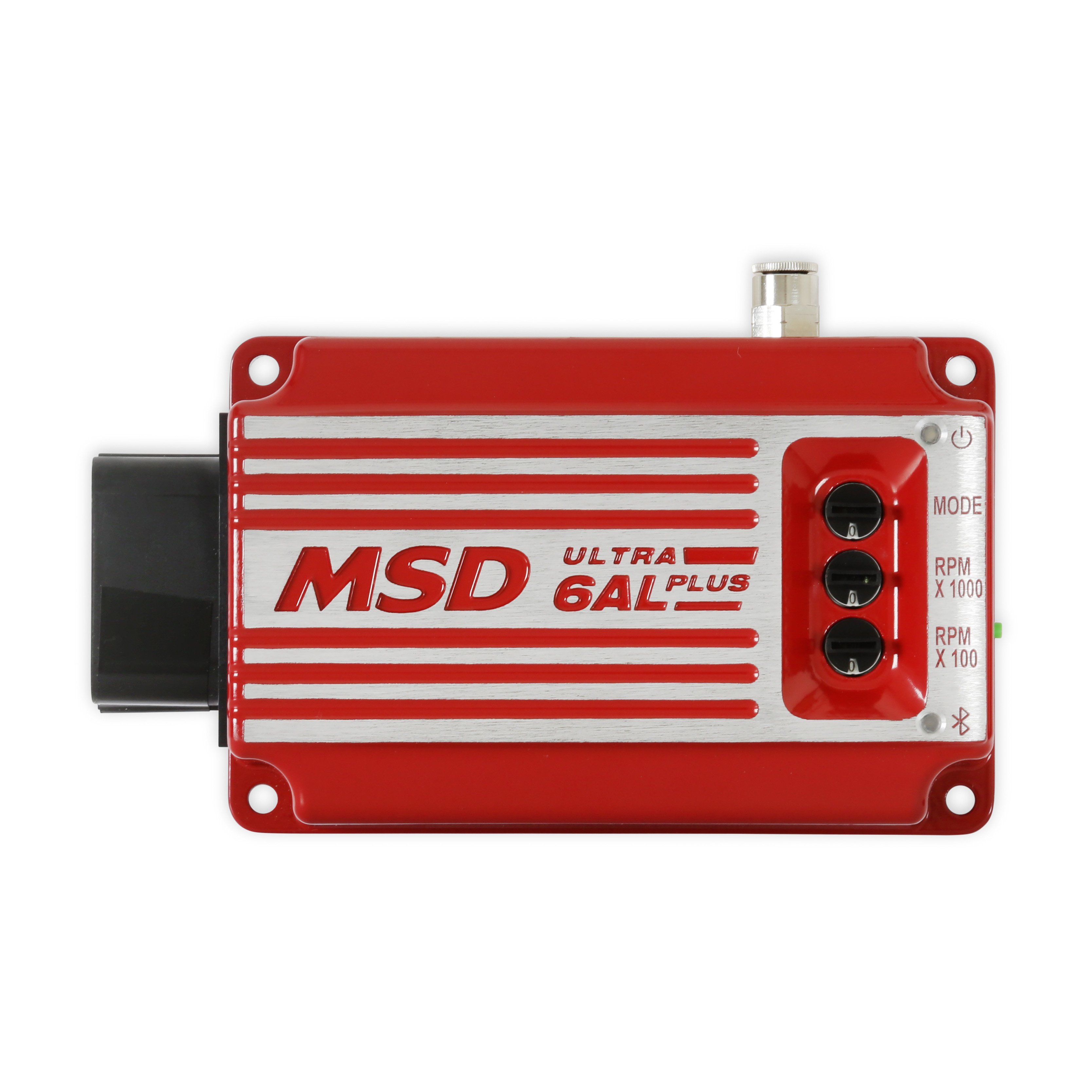

MSD Performance 6523 - 6AL-Ultra Plus Ignition Control Box, With Mobile App Features

The new Ultra 6AL series delivers full MSD power in a compact, lighter package! The Ultra 6AL Series continues to use a high speed controller that can make extremely quick compensations to the output voltage, multiple spark series, timing and rpm limits while maintaining precise timing and accurate rev limiting. The circuits and controller of the MSD have been thoroughly filtered to create protection against Electro Magnetic Interference (EMI). The Ultra 6AL Series feature a capacitive discharge ignition design. The majority of stock ignition systems are inductive ignitions. In an inductive ignition, the coil must store and step up the voltage to maximum strength in between each firing. At higher rpm, since there is less time to charge the coil to full capacity, the voltage falls short of reaching maximum energy which results in a loss of power or top end miss.

High conversion efficiency ensures minimal heat generation and maximum spark energy output with less current draw from the battery - (Highly efficient Ignition, minimum heat and max spark energy with less current draw)
High RPM operation and maximum output using the Blaster HVC, PN 8252 or HVC II, PN 8253
Powerful capacitive discharge of multiple sparks improves performance
Consistently high spark energy of 135mJ to 150mJ for every firing, from idle to redline RPM
Increase spark series duration lasts for 18 of crankshaft rotation
Easily installs on 4, 6, 8-cylinder engines with distributors
Operates on most 7 to 28 volt electrical systems
Connects to points, magnetic pickups, and Hall/Crank Input distributors

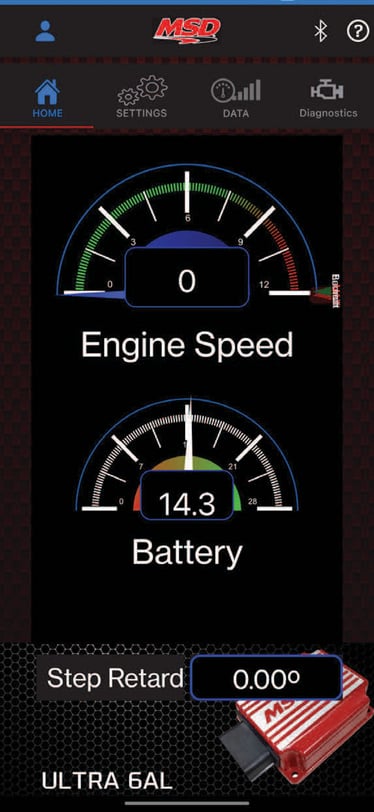

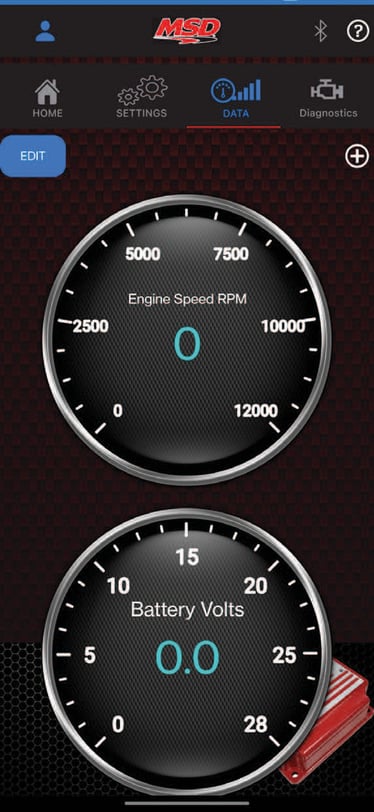

Bluetooth connectivity to Mobile app interface for settings and monitors
MSD CAN communication for easy connectivity to MSDView using a CAN MSD Hub and Power Grid USB or CAN-USB Bridge 89982 product
Straight USB port to easily connect to MSDView using a laptop
Fully protected against an open coil, shorted coil & open load
Compact design full MSD power
Quickens throttle response & improves starting
Tach Output
Launch, Burnout, and Step Retard activation inputs available. This ignition box has a built-in tri step RPM rev limit controlled by the mobile app

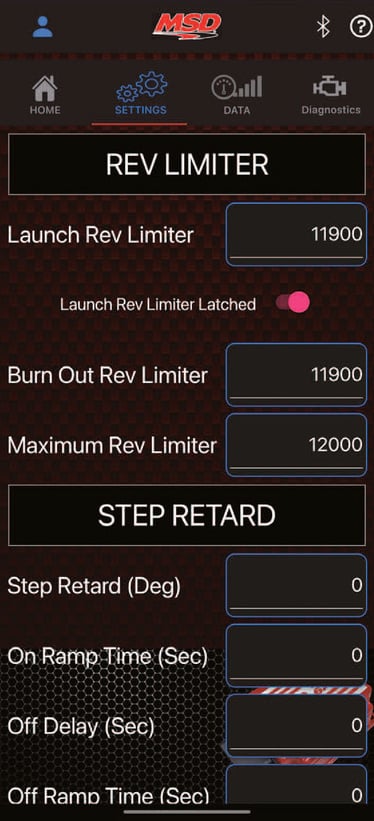

Mobile app available settings: Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value
Programmable Step Retard: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation

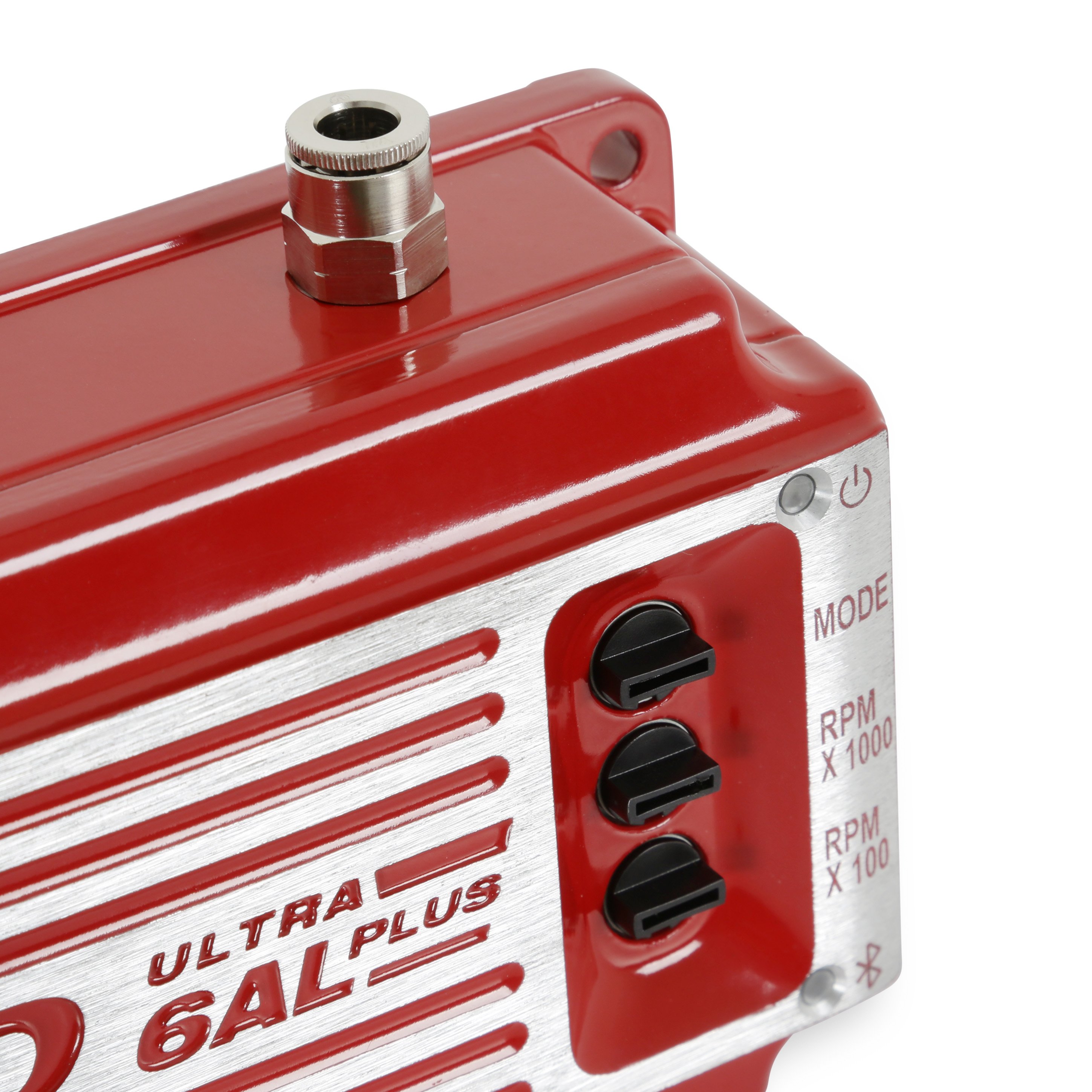

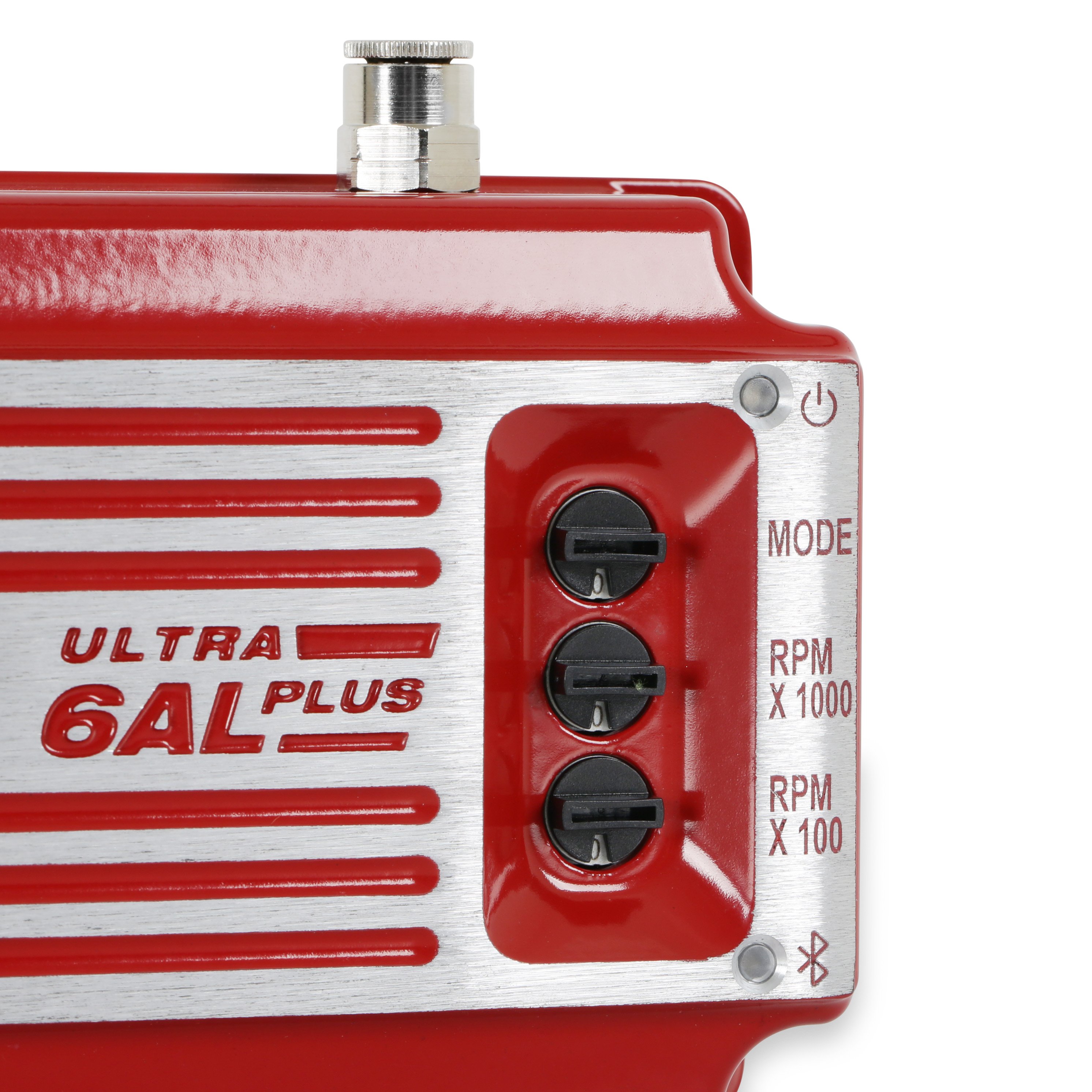

Programmable Start Retard through rotary switches: 0, 10, 20 degrees
Programmable cylinder selection through rotary switches: 4, 6, and 8 cylinders
Alerts and monitors available
High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation
Maximum programmable retard of 35 degrees
Programmable timing curves in 2D Plots or 3D tables (RPM vs Timing vs MAP Pressure) - You can plot the 3D graph and edit a table 20x20 either from Mobile app (Phone) or from MSDView (laptop)
Programmable Launch Timing (Seconds vs degrees after launch wire activation)
MAP sensor interface up to 400 kPA (58 PSI / 4 Bars)
Capable to program cylinder selection and start retard without a computer or app for old school racers (like 6425 or 6428 box)

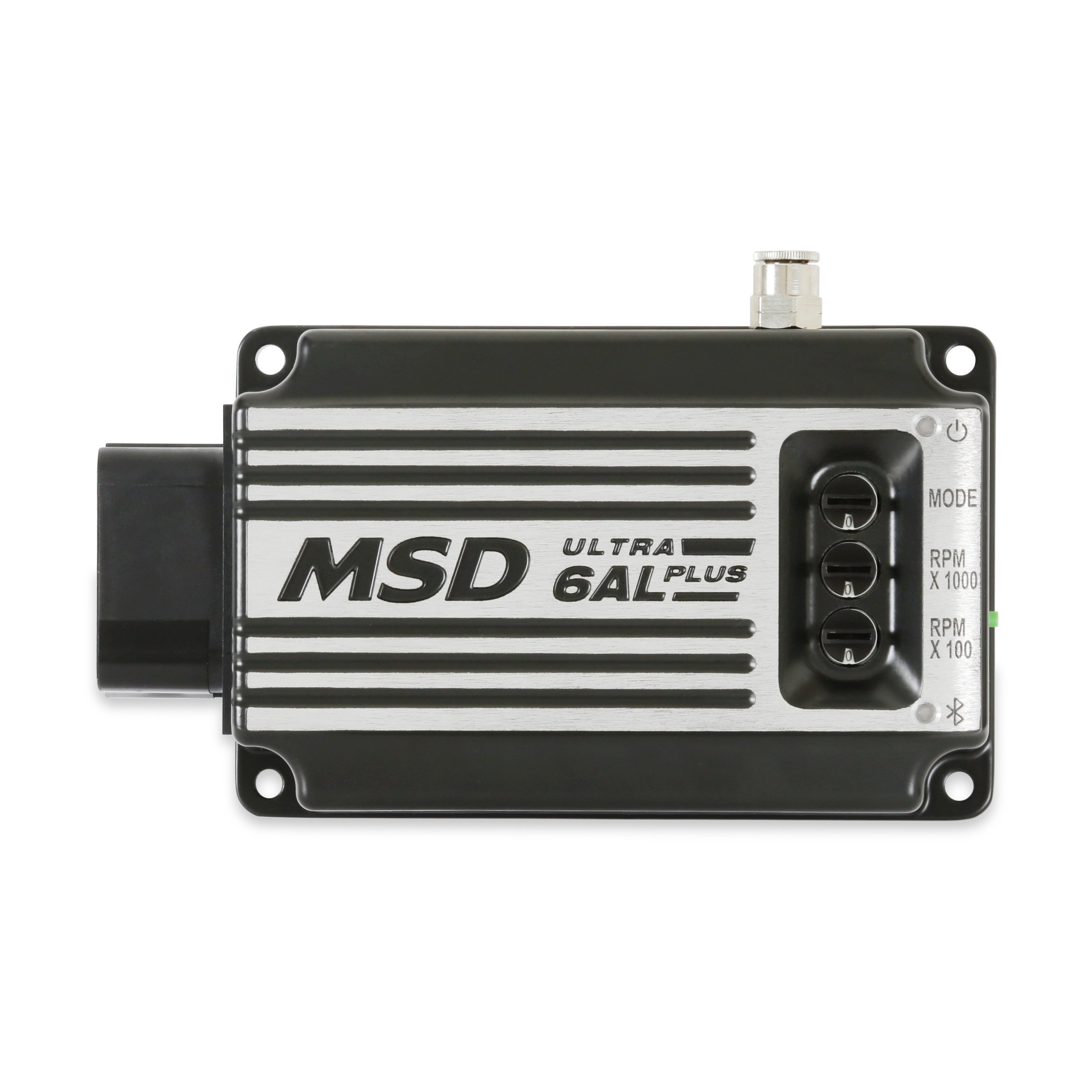

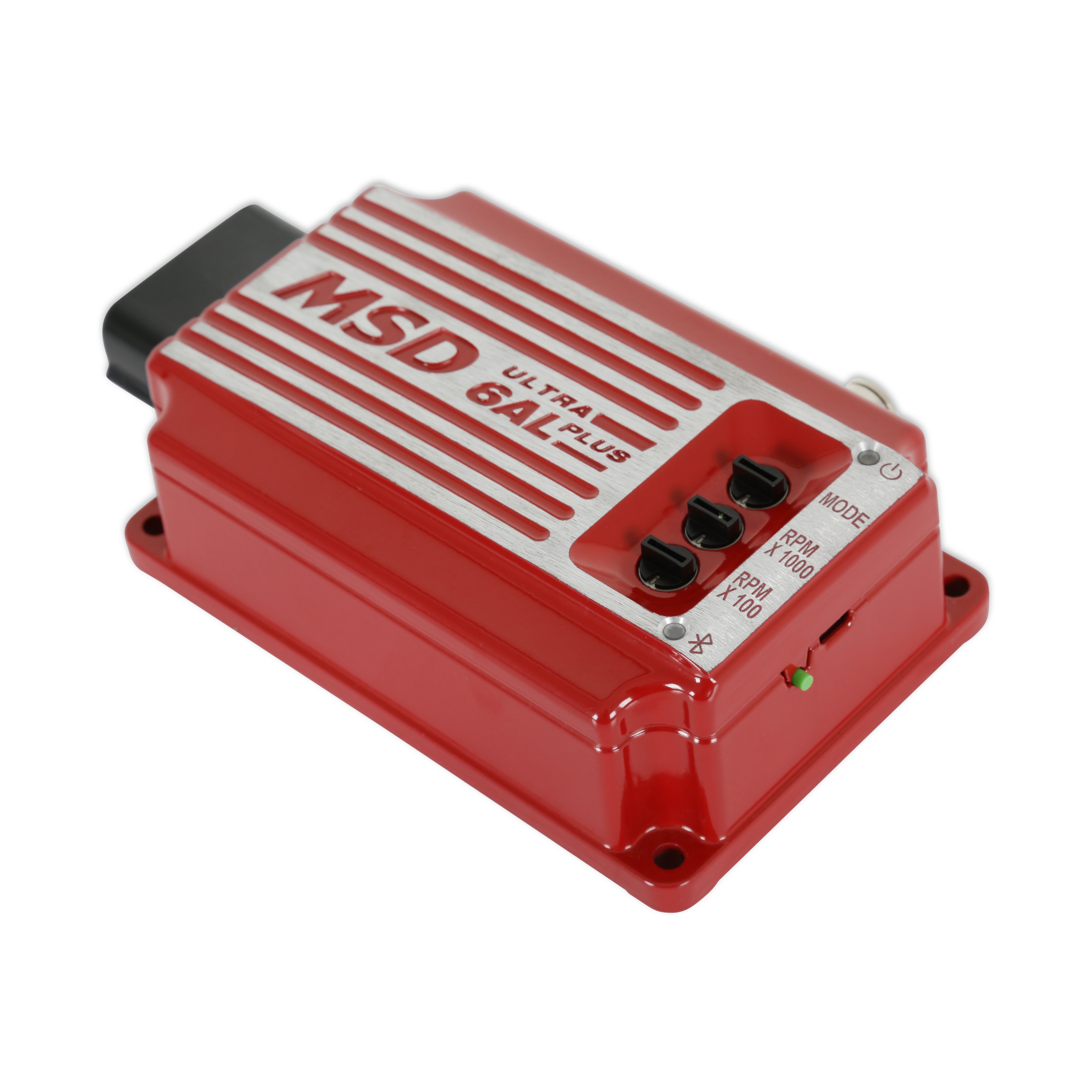

Color/Finish:	Black, Red
Usage:	Street, Performance
Current Draw:	.8 Amps per 1,000 RPM
Primary Voltage:	520-540 Volts
Rev Limiter:	Yes
RPM Range:	0-15.000 RPM with 14.4 Volts
Secondary Voltage:	45.000
Spark Energy:	135-150 mJ Per Spark
Spark Series Duration:	20° Crankshaft Rotation
Voltage Required:	12-15 Volts, 7 Volt Start
