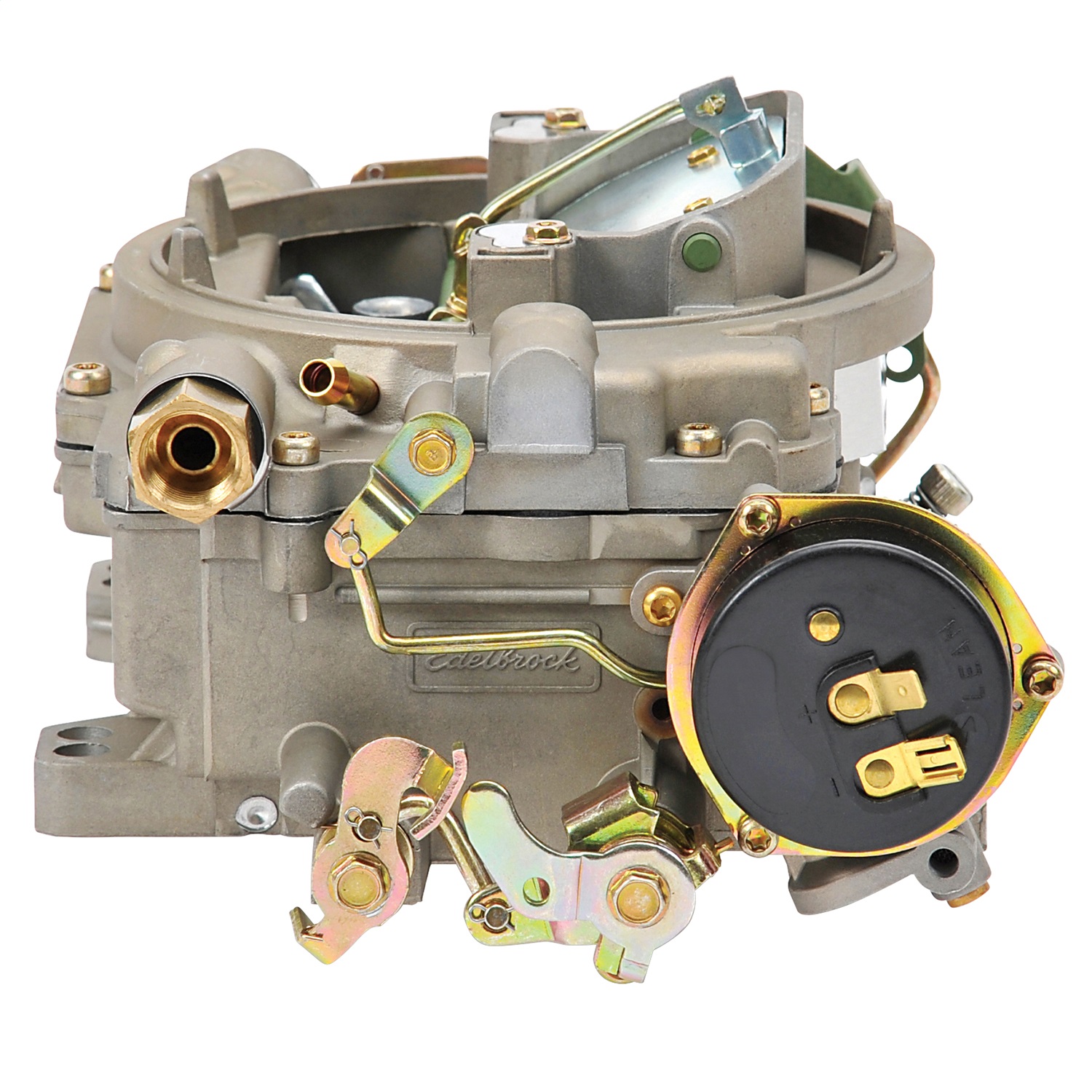

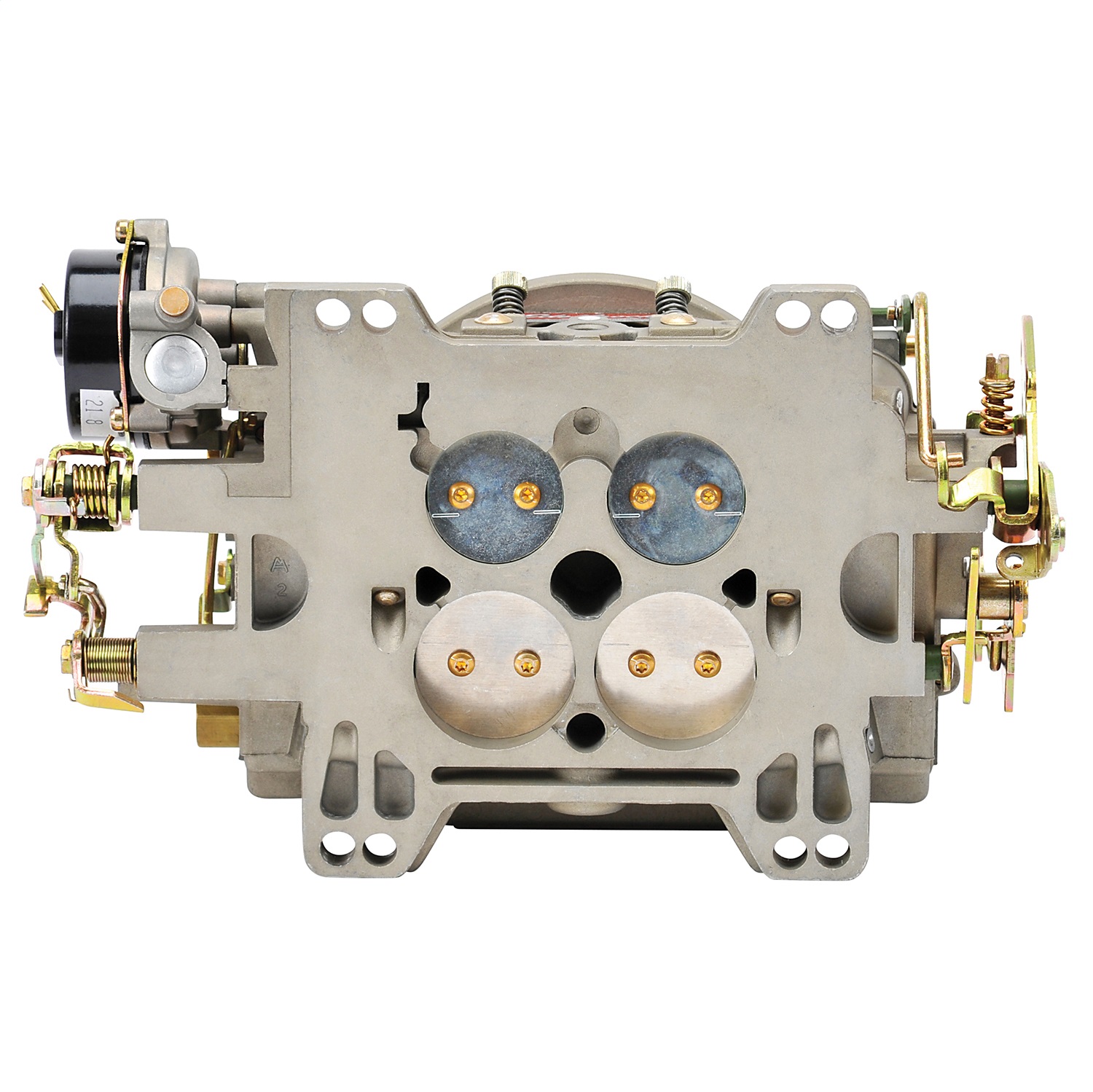

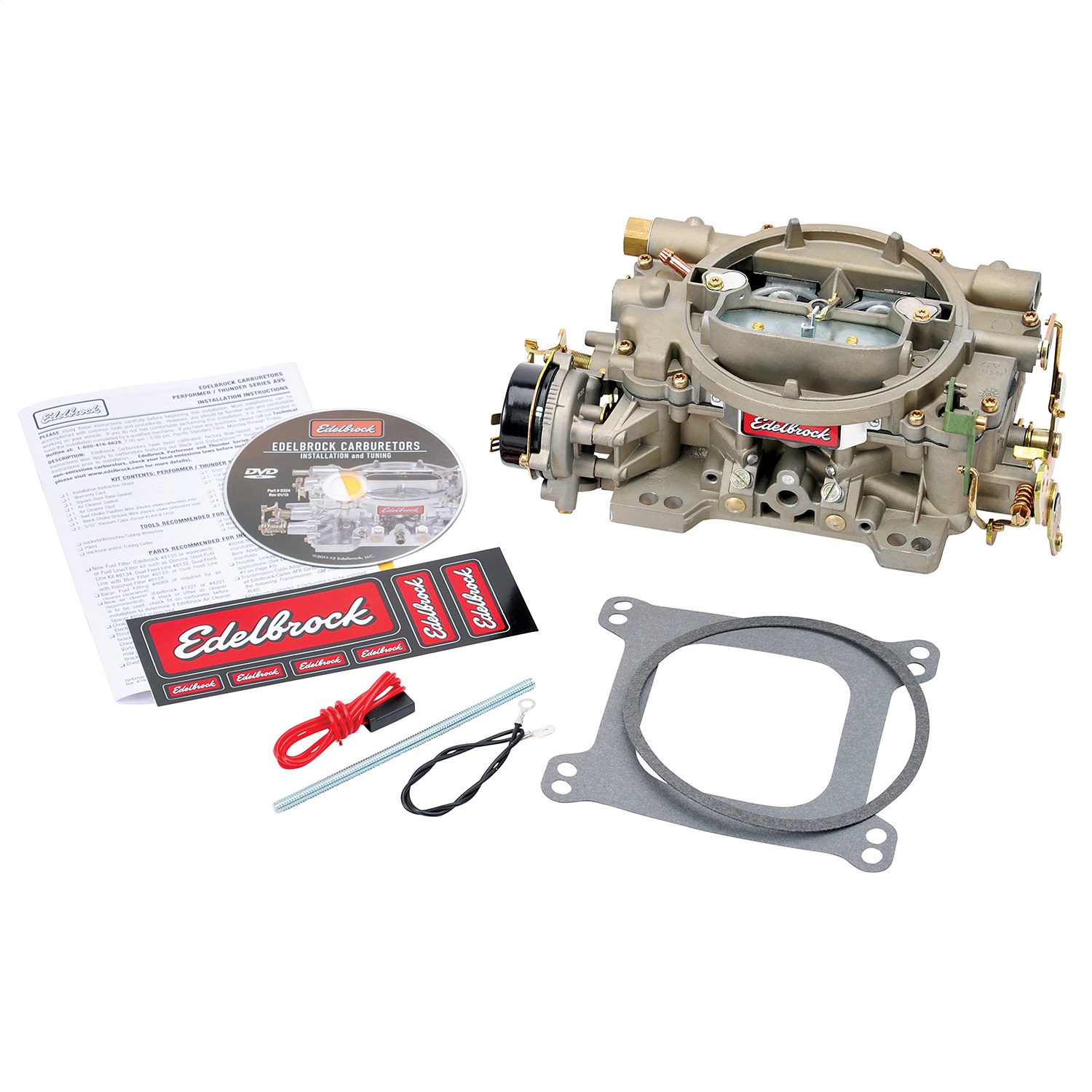

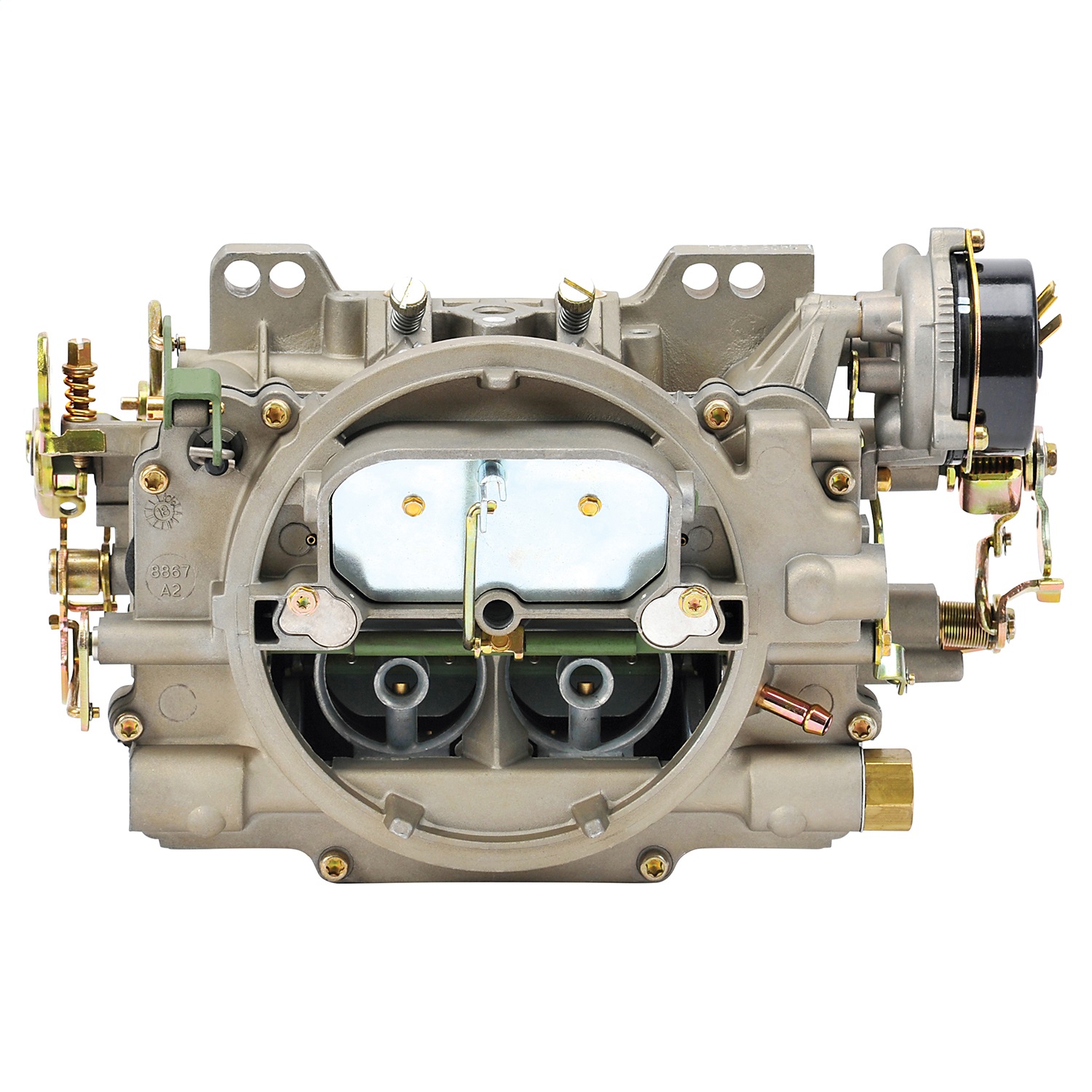

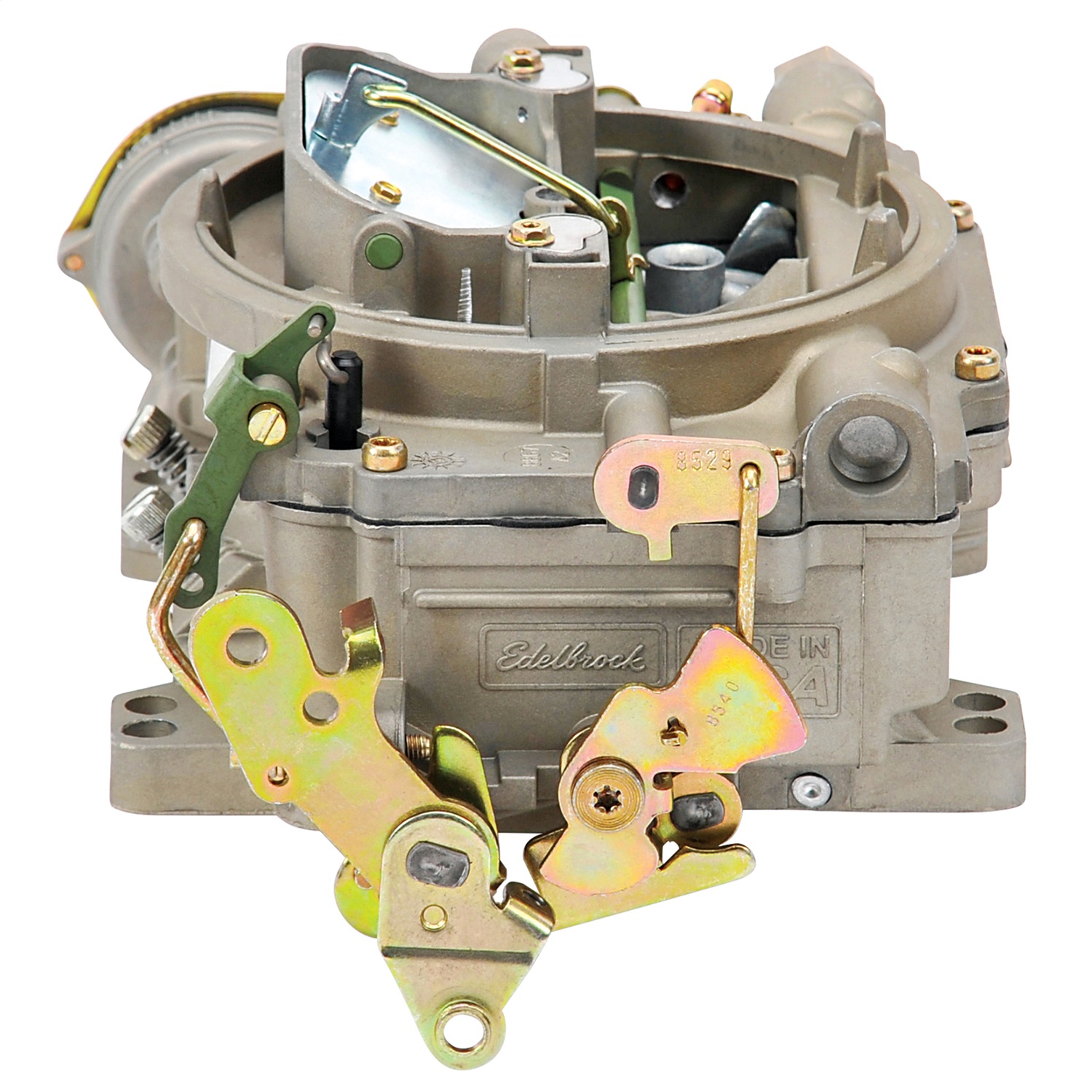

Performer Series Carburetor, Marine, 600 CFM
In Stock. Note: Shipping Date 1-May
Only 2 in stock.
€733.00 incl. vat
Plus shipping costs*Comparing
Notes
The Marine Series 600 CFM electric choke carburetor is a precisely tuned, quality-built carburetor that can handle the harsh abuse only a marine environment can inflict. Several characteristics make the 1409 Marine Series 600 CFM electric choke carburetor an outstanding marine performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly, the carburetor has the unique ability to hold a tune, so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that is iridited and assembled with PTFE-coated shafts and pump arm for maximum protection. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable, user-friendly and is easily tunable for trouble-free operation.
CALIBRATED FOR PERFORMANCE
Designed and calibrated for optimum marine performance in small-block V8 engines with a variety of manifolds that include Edelbrock Performer, Performer RPM, RPM Air-Gap, Torker II and other brands of similar design. These carburetors feature venturi diameters of 1-3/16 for the primaries and 1-9/16 for the secondaries. Throttle blade diameters are 1-7/16 for the primaries and of 1-11/16 diameter for the secondaries. Comes with: Metering Jets - Primary .098, Secondary .101; Metering Rods - .068 x .047; Step-Up Spring - orange (5 Hg).
- With Electric Choke

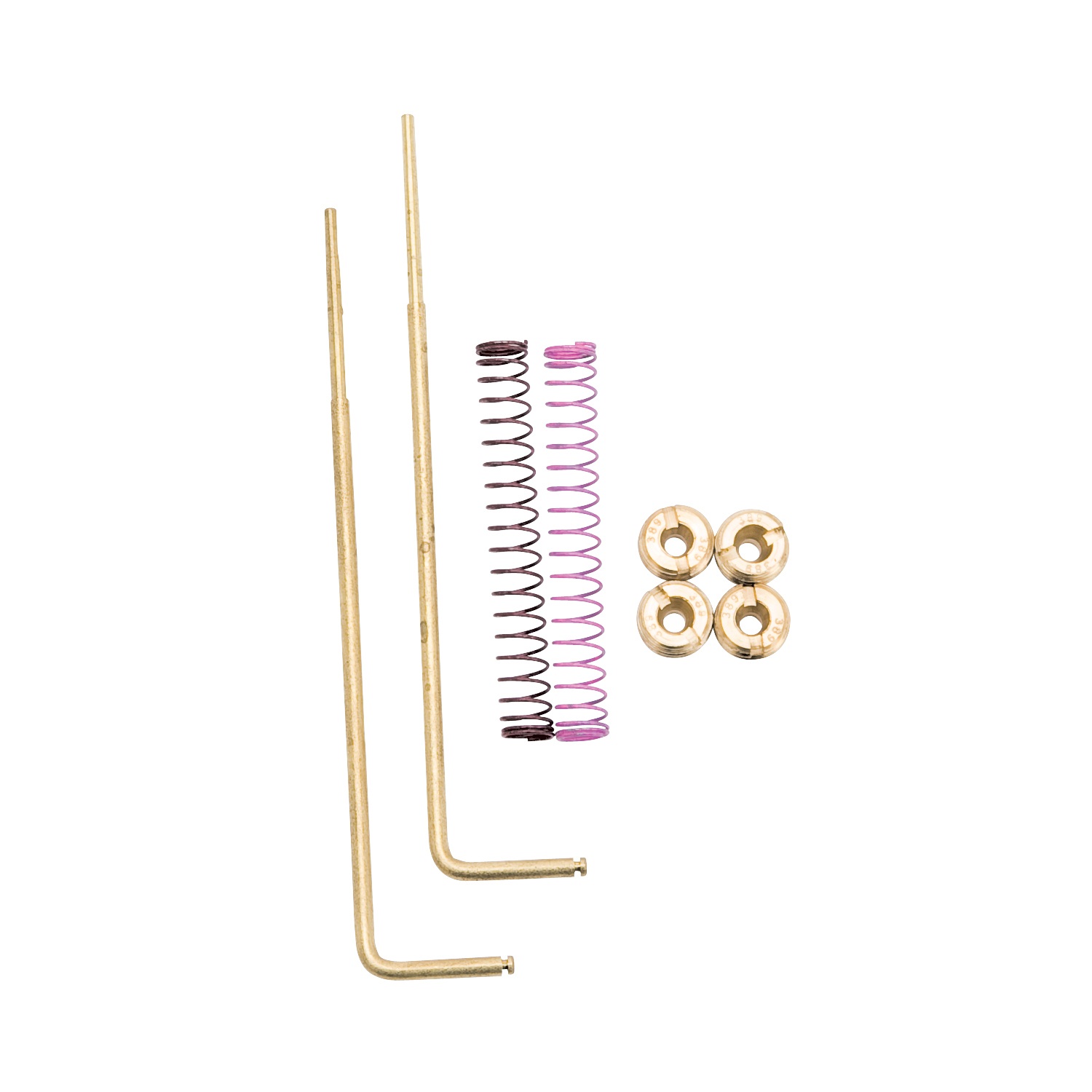

- Also ideal for Chevy 4.3L V6 engines with a Performer manifold (see Manifold Section) and Calibration Kit #1485.
- Comply with U.S. coast guard safety standards
- Teflon coated shafts/pump arm for max. protection
Details
| Barrel: | 4 |
|---|---|
| CFM: | 600 |
| Carburator Setup: | Single-Carburator |
| Choke: | Electric |
| Color/Finish: | Zinc-Dichromate |
| Emission: | Without EGR |
| Flange: | Square Bore |
| Inlet Quantity: | Single |
| Secondaries: | Air valve |
| Usage: | Marine |
links
Login
- For 4.3L 90 Deg V6 use calibration kit #1485 with #2111 or #2114 manifold
- Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel.
- The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. These fuels can also damage other fuel system components unless specifically designed for use with alcohol fuels;
- The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer's warranty of the carburetor
The Marine Series 600 CFM electric choke carburetor is a precisely tuned, quality-built carburetor that can handle the harsh abuse only a marine environment can inflict. Several characteristics make the 1409 Marine Series 600 CFM electric choke carburetor an outstanding marine performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly, the carburetor has the unique ability to hold a tune, so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that is iridited and assembled with PTFE-coated shafts and pump arm for maximum protection. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable, user-friendly and is easily tunable for trouble-free operation.
CALIBRATED FOR PERFORMANCE
Designed and calibrated for optimum marine performance in small-block V8 engines with a variety of manifolds that include Edelbrock Performer, Performer RPM, RPM Air-Gap, Torker II and other brands of similar design. These carburetors feature venturi diameters of 1-3/16 for the primaries and 1-9/16 for the secondaries. Throttle blade diameters are 1-7/16 for the primaries and of 1-11/16 diameter for the secondaries. Comes with: Metering Jets - Primary .098, Secondary .101; Metering Rods - .068 x .047; Step-Up Spring - orange (5 Hg).
- With Electric Choke
- Also ideal for Chevy 4.3L V6 engines with a Performer manifold (see Manifold Section) and Calibration Kit #1485.
- Comply with U.S. coast guard safety standards
- Teflon coated shafts/pump arm for max. protection
Details
| Barrel: | 4 |
|---|---|
| CFM: | 600 |
| Carburator Setup: | Single-Carburator |
| Choke: | Electric |
| Color/Finish: | Zinc-Dichromate |
| Emission: | Without EGR |
| Flange: | Square Bore |
| Inlet Quantity: | Single |
| Secondaries: | Air valve |
| Usage: | Marine |
links
Login

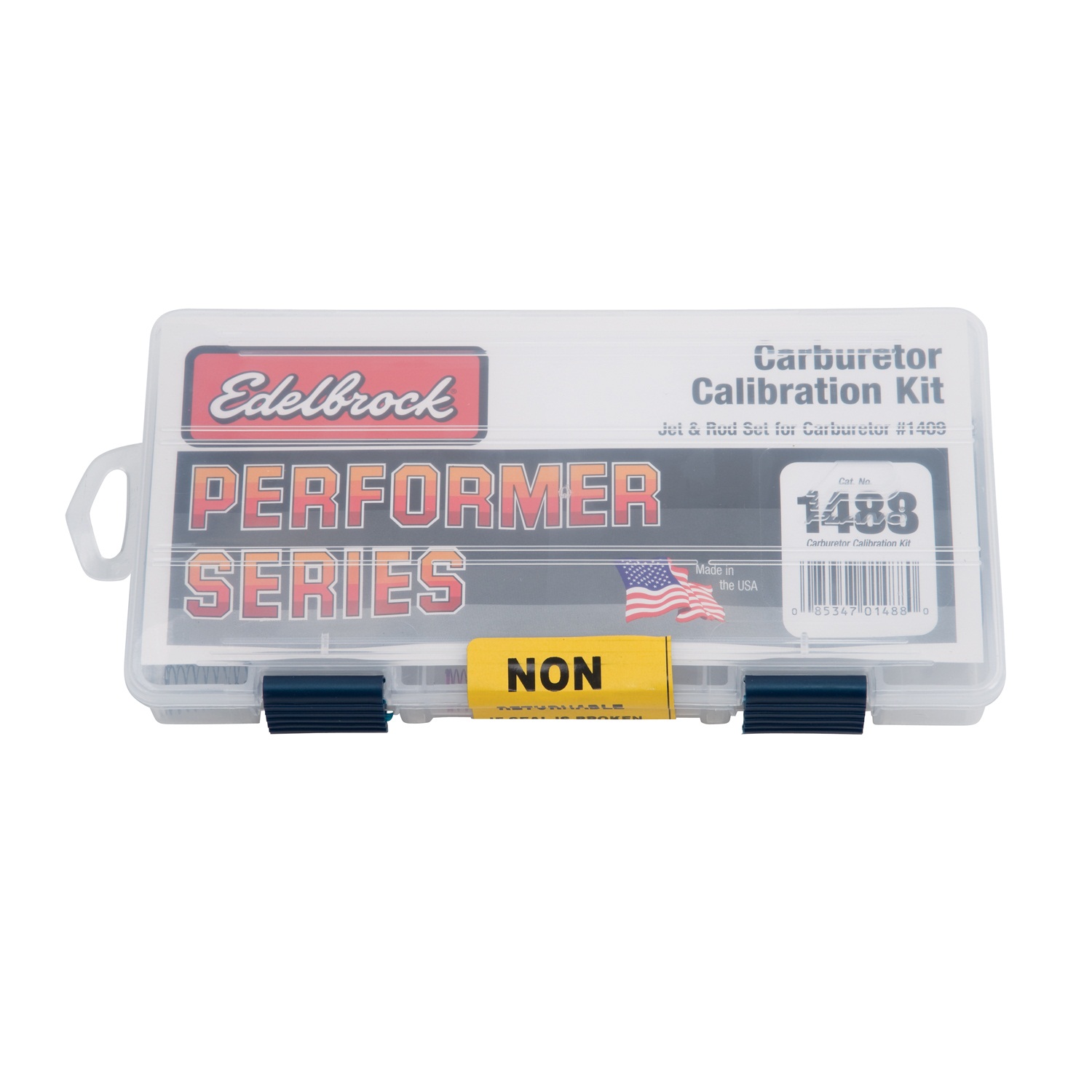

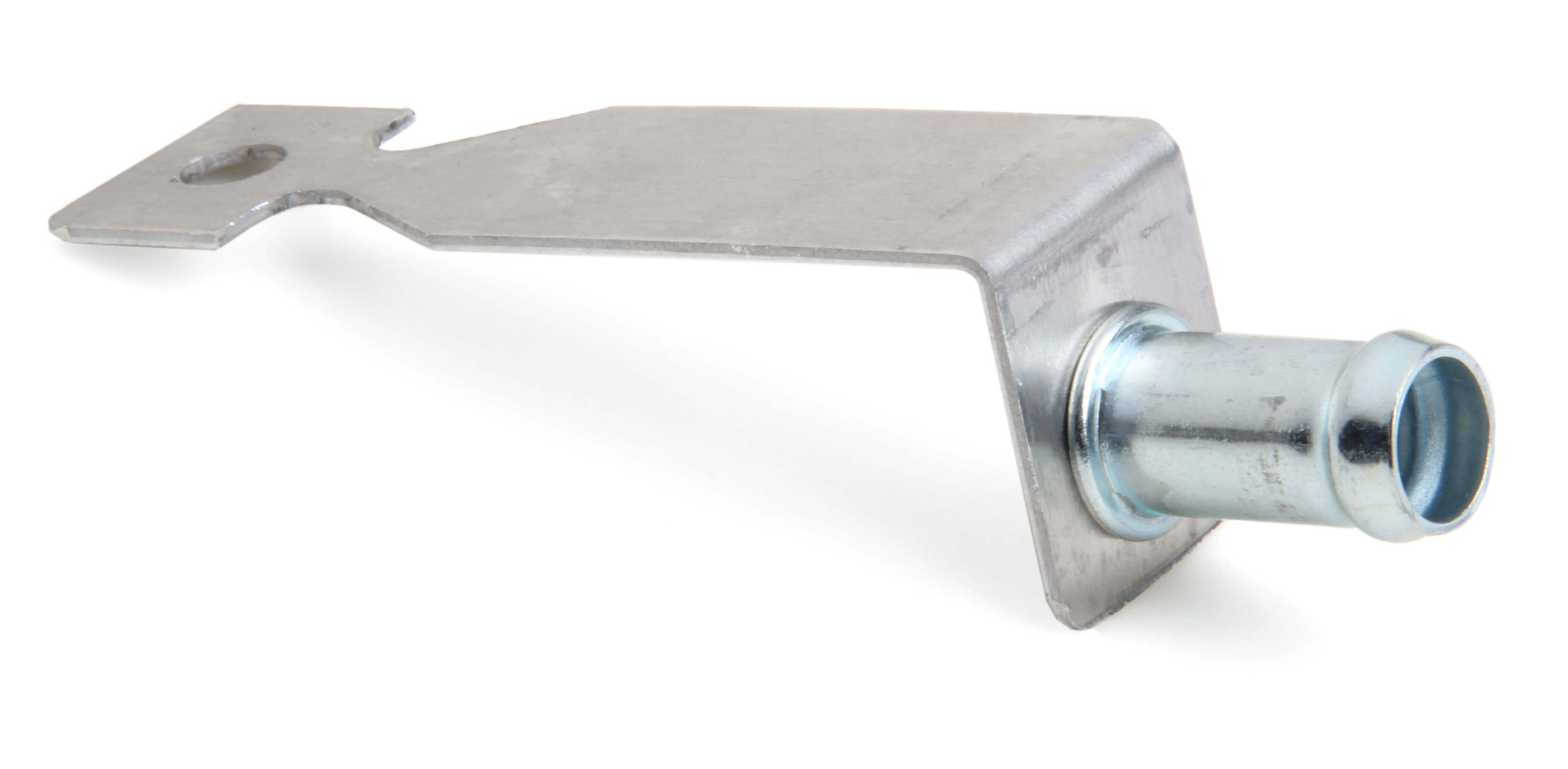

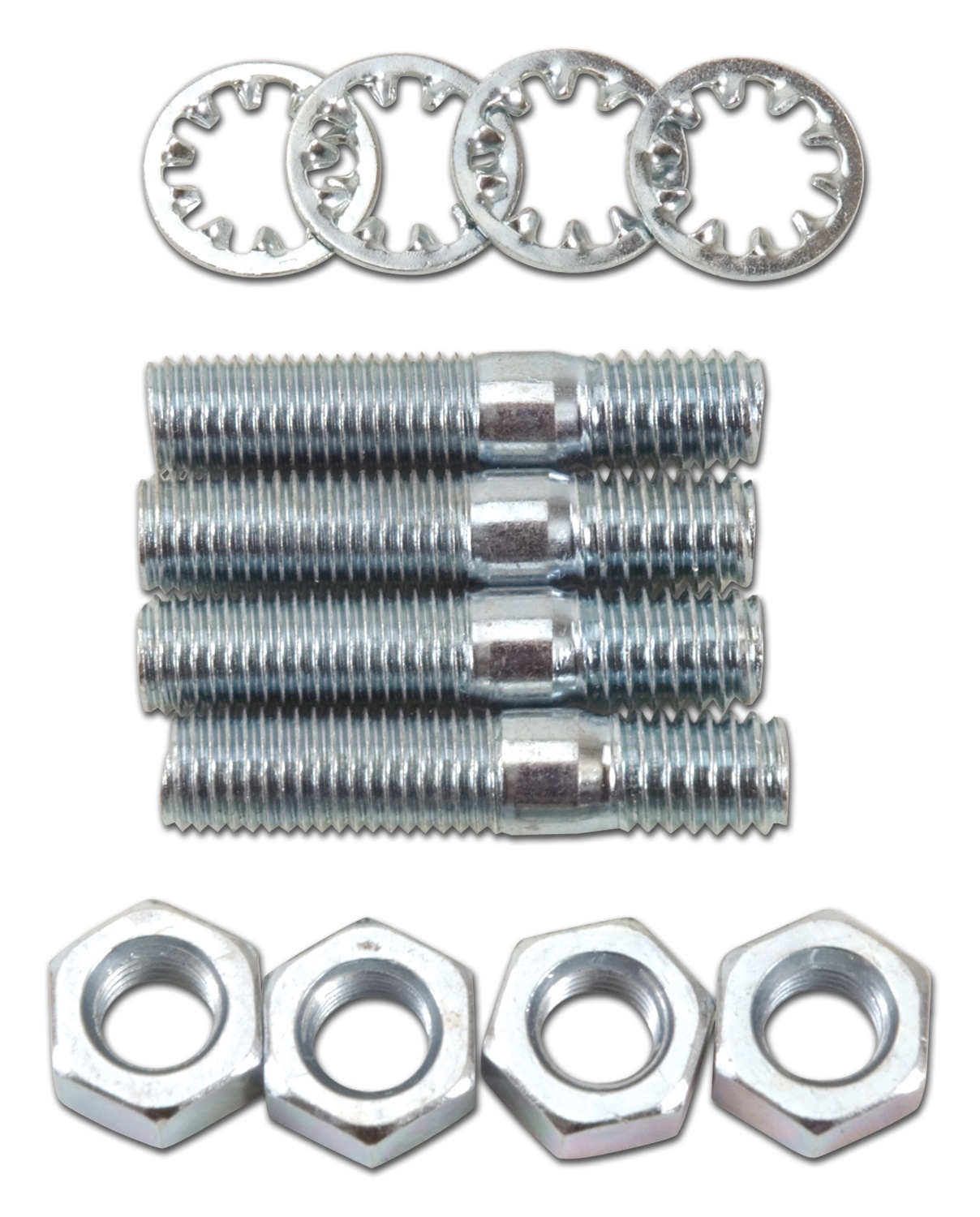

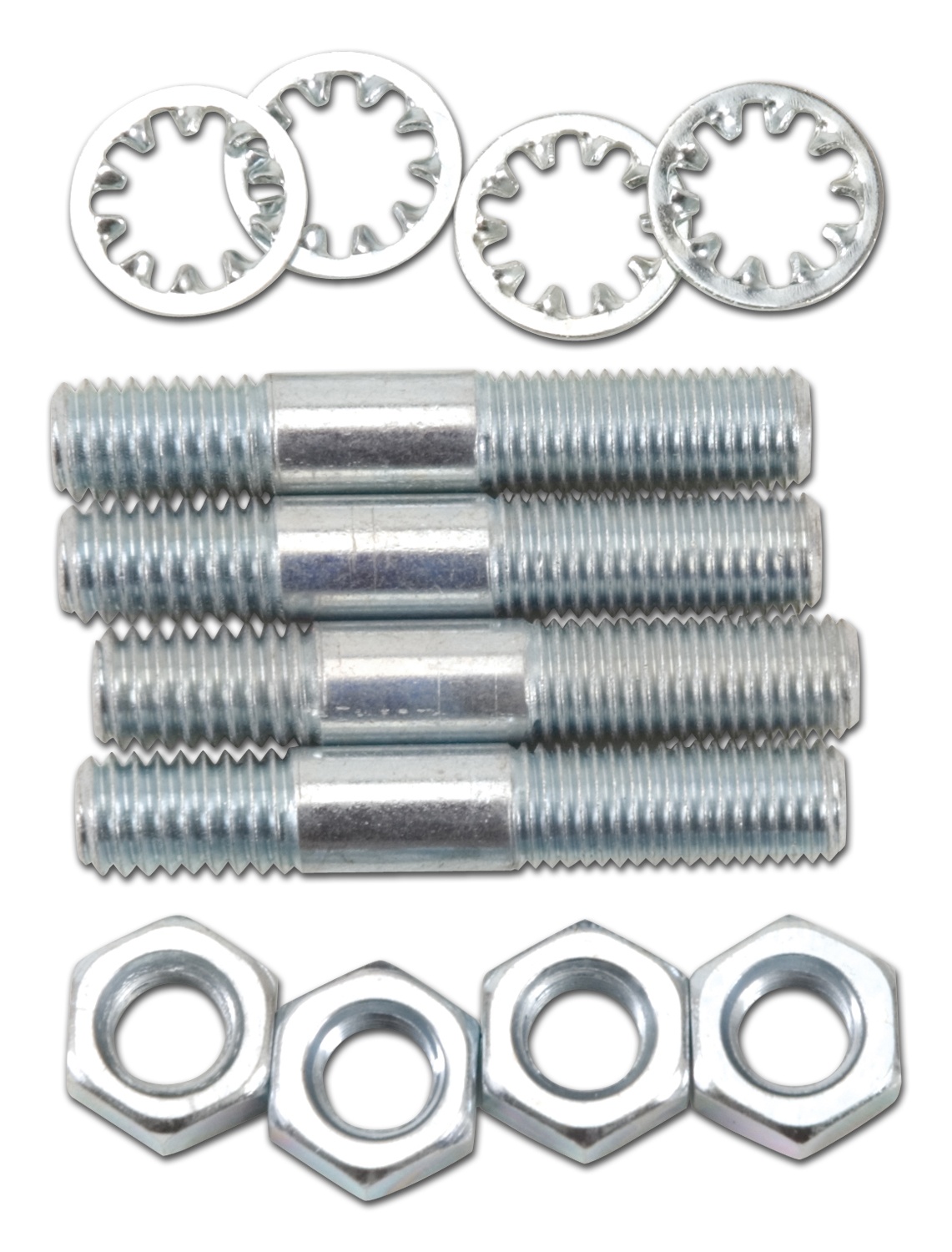

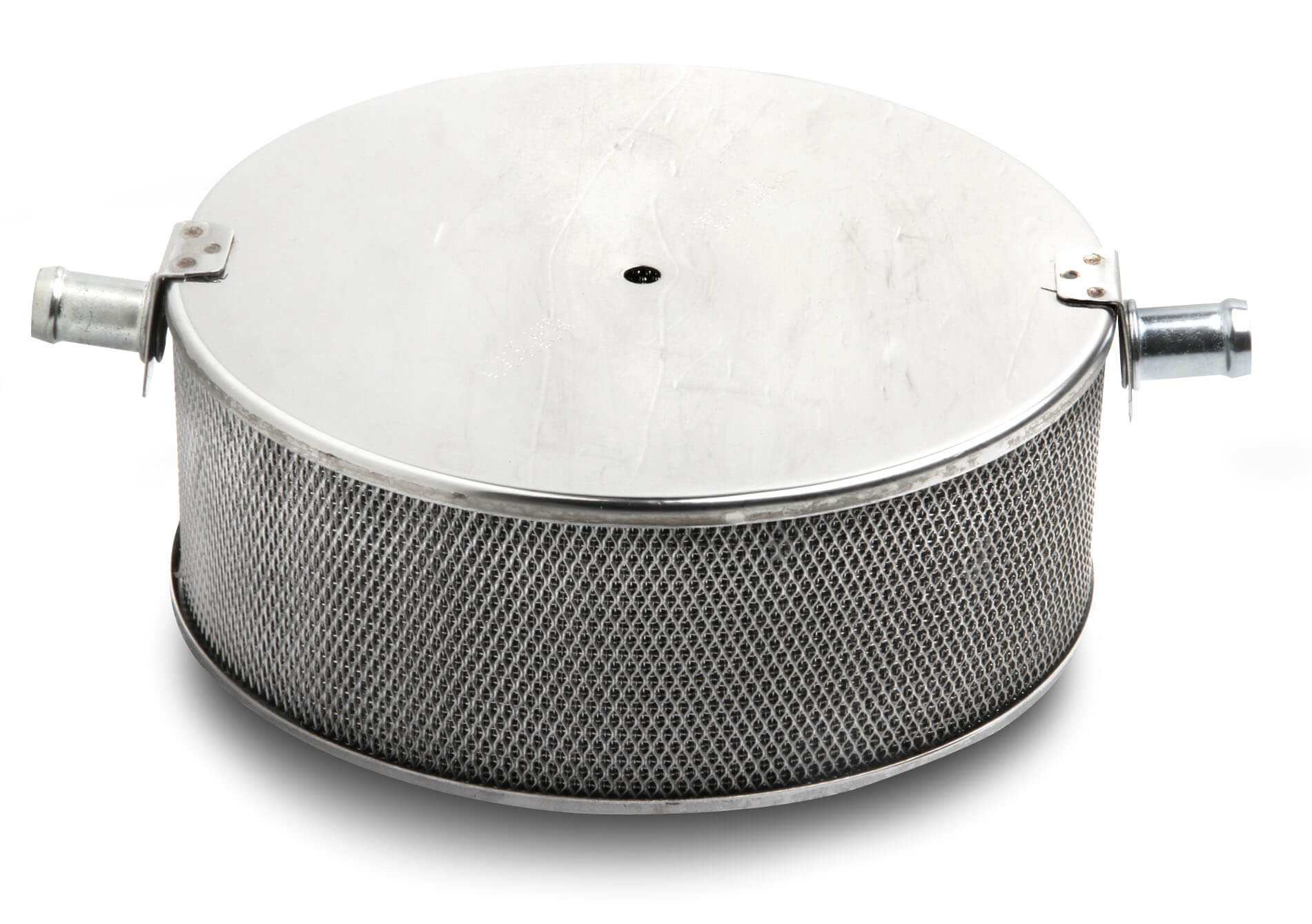

Accessory Items
