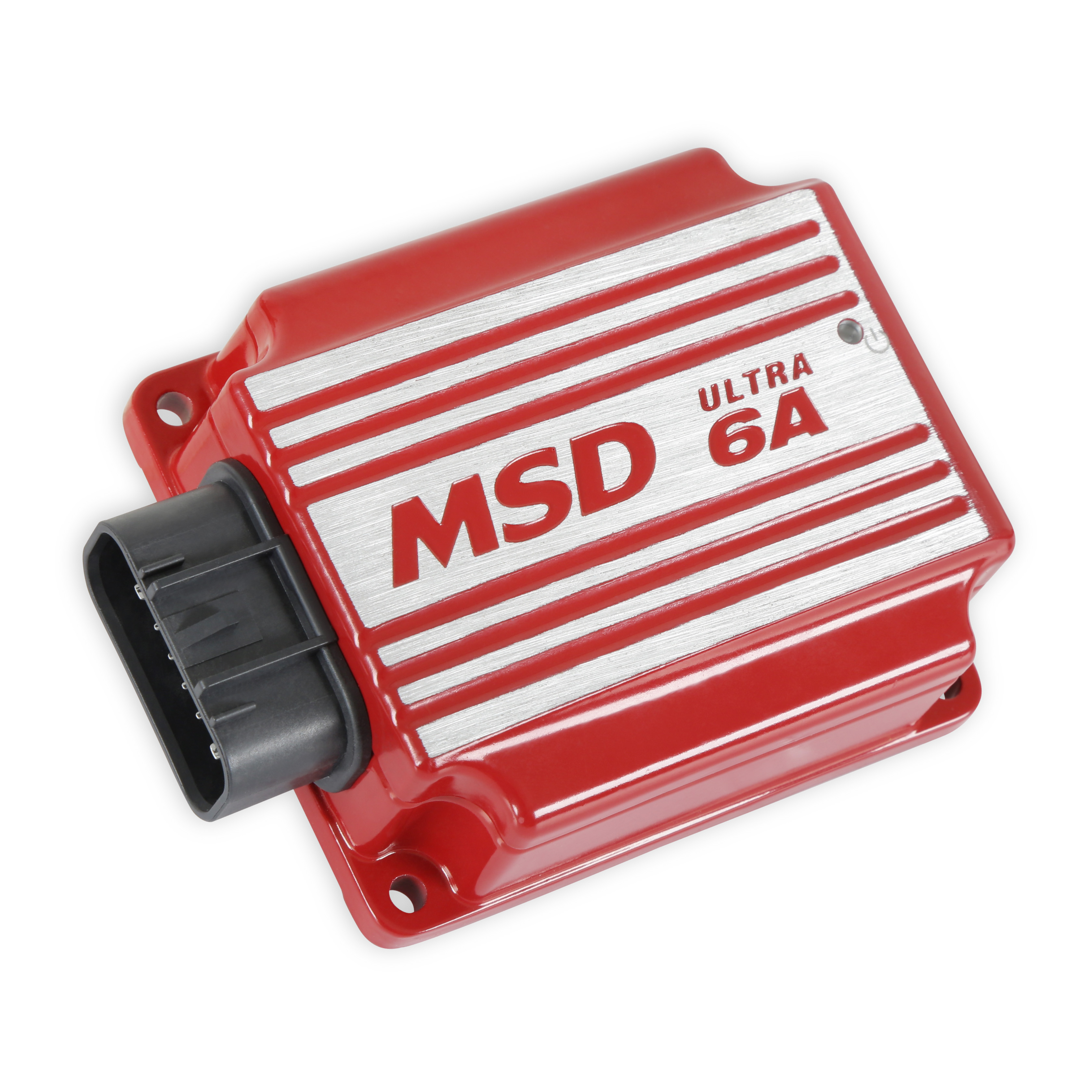

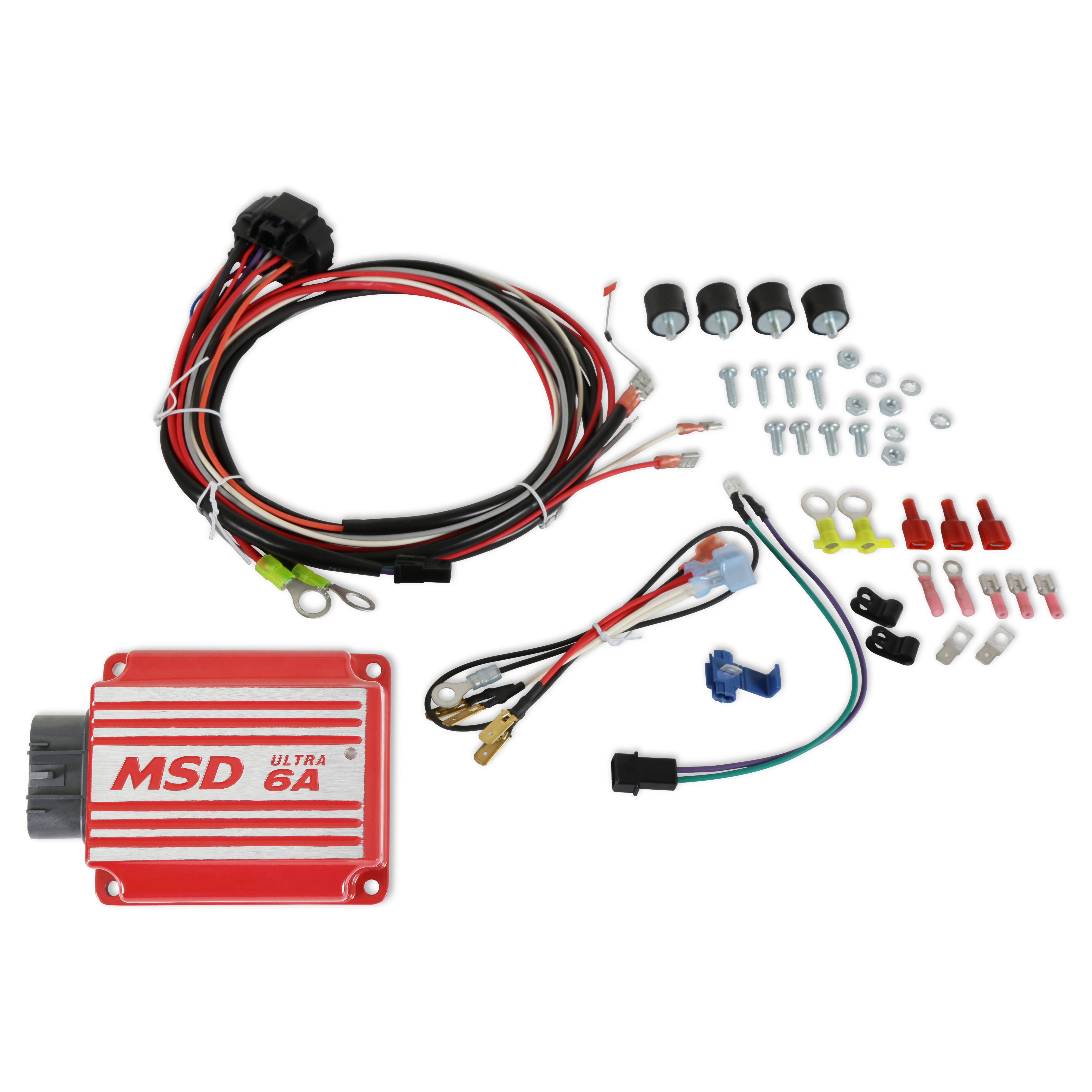

6A-Ultra Ignition Control Box, Universal
Only 1 in stock.
€366.00 incl. vat
Plus shipping costs*Comparing
Notes
- Plug and Play upgrade to current installations with a 6201, MSD 6A
- New processor and board design provide a highly efficient ignition, minimal heat and max spark energy with less current draw
- 60% smaller and 50% lighter than the MSD Digital 6A (688 grams vs 344 grams)
- High rpm operation and maximum output using the Blaster HVC, PN 8252 or HVC II, PN 8253
- Powerful capacitive discharge of multiple sparks improves performance, and ensure complete combustion
- Consistently high spark energy of 135mJ to 150mJ for every firing, from idle to redline rpm
- Easily installs on 4, 6, 8-cylinder engines with distributors
- Operates on most 7 to 28-volt electrical systems
- Connects to points and magnetic pickups
- Fully protected against an open coil, shorted coil & open load
- Compact design - full MSD power
- Quickens throttle response & improves starting
- Tach Output to drive an external Tachometer
Details
| Color/Finish: | Black, Red |
|---|---|
| Current Draw: | 1.1 Amp per 1,000 RPM |
| Primary Voltage: | 520-540 Volts |
| RPM Range: | 0-15.000 RPM with 14.4 Volts |
| Rev Limiter: | No |
| Secondary Voltage: | 45.000 |
| Spark Energy: | 135-150 mJ Per Spark |
| Spark Series Duration: | 20° Crankshaft Rotation |
| Usage: | Performance, Street |
| Voltage Required: | 12-15 Volts, 7 Volt Start |
