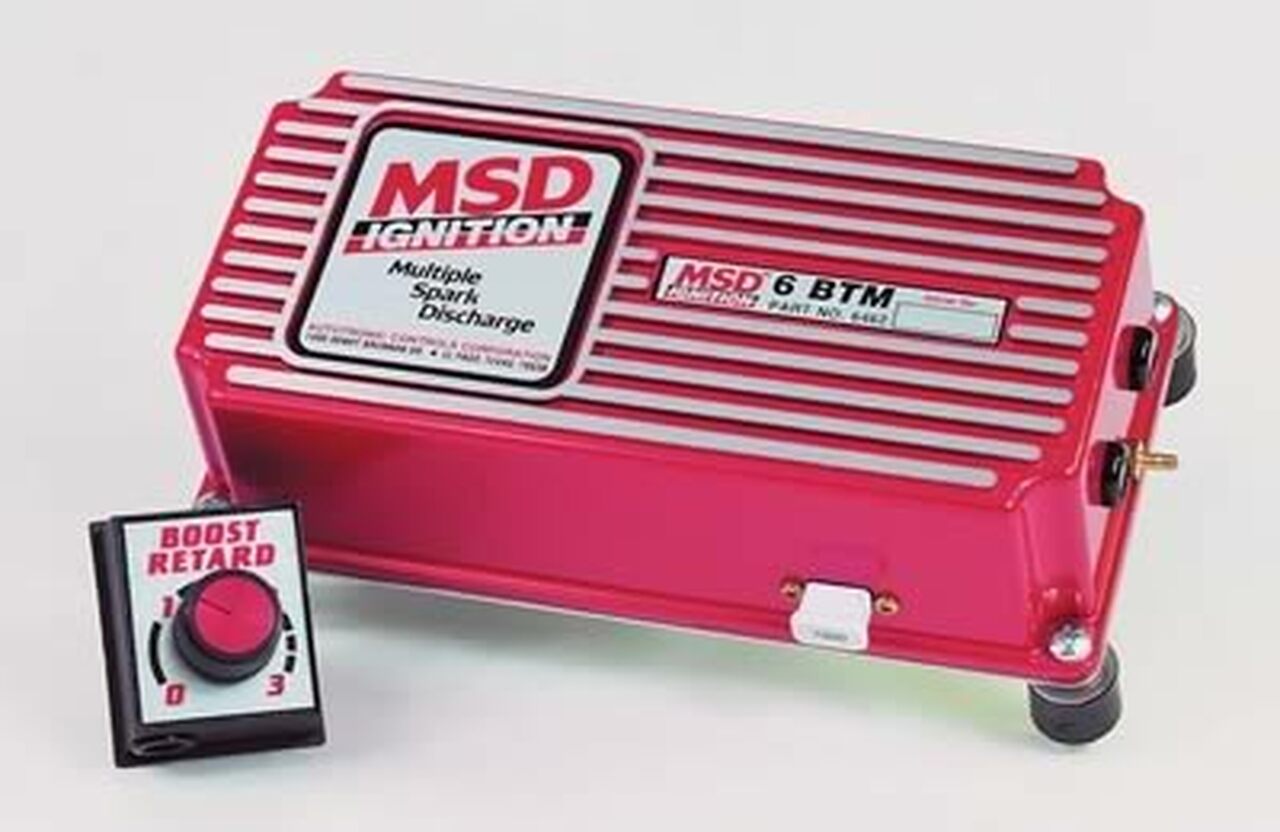

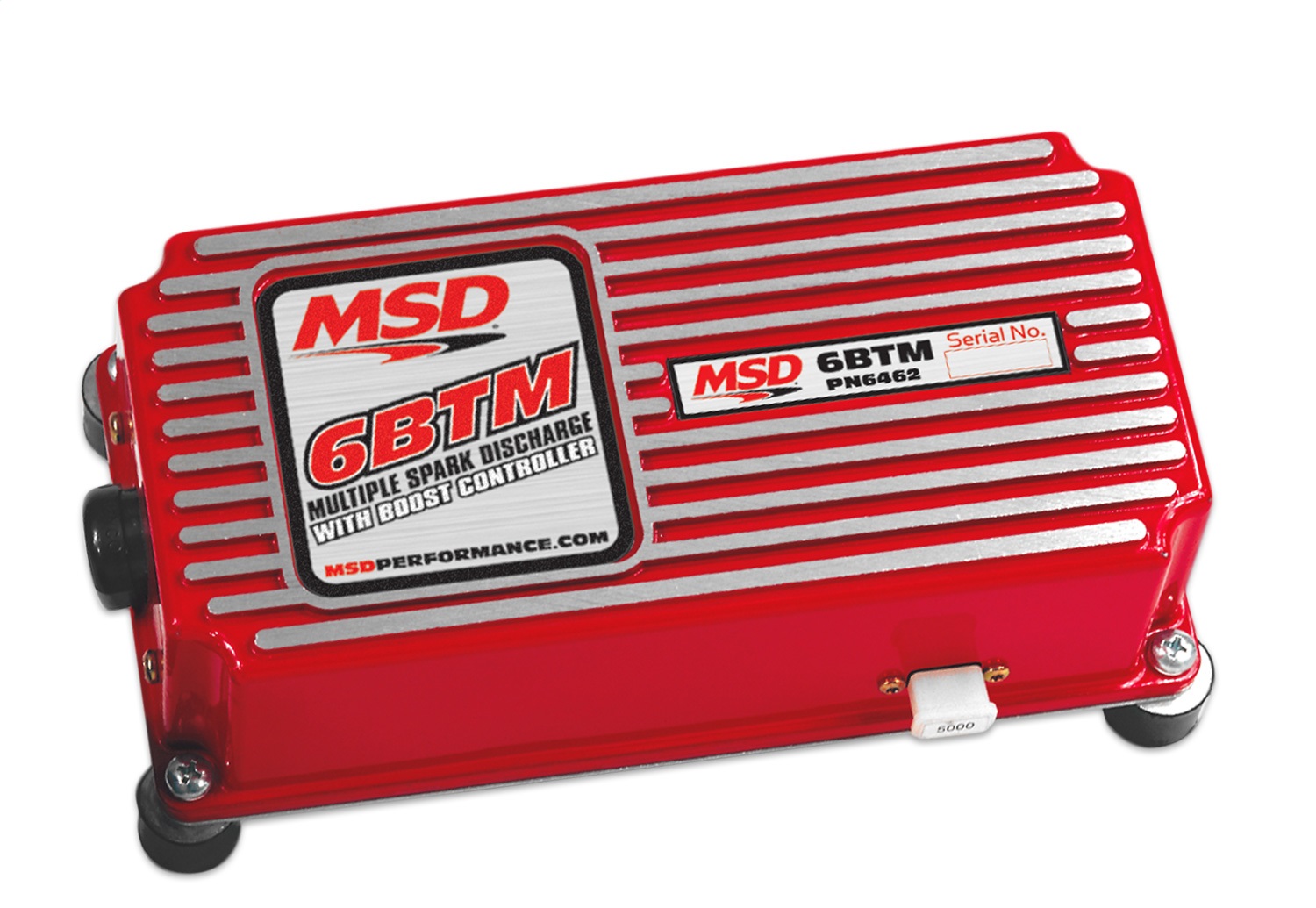

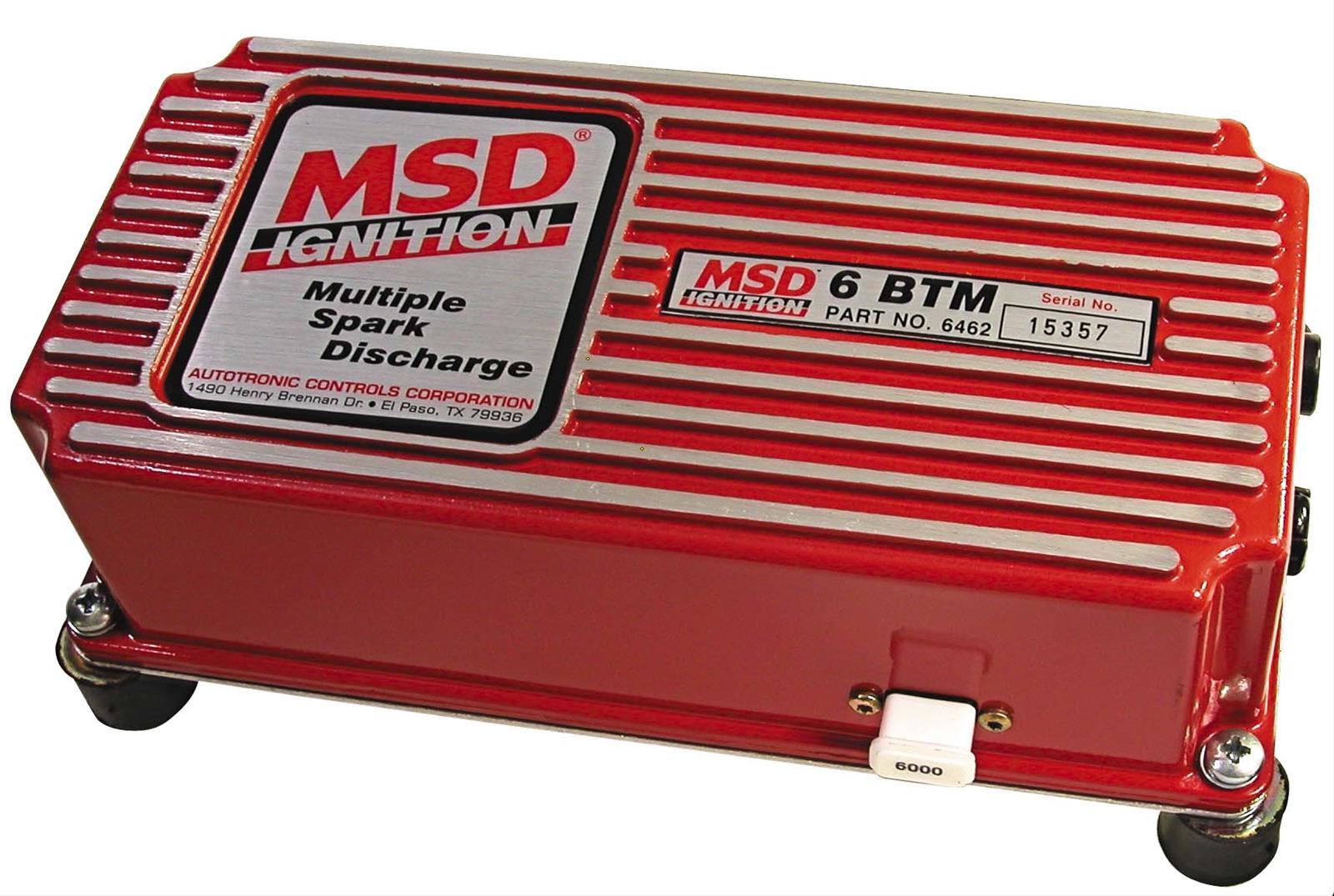

6BTM Ignition Control Box, with Built-in Boost Control
In Stock, delivery time: 1-3 Workdays
€857.00 incl. vat
Plus shipping costs*Comparing
Notes
- Multiple spark, capacitive discharge ignition control
- Supplied with 3,000, 6,000, 7,000 & 8,000 RPM Module
- Supplied with rubber shock mounts
- Programmable for 4, 6, or 8-cylinders by cutting red/blue wire loops
- Built-in Soft Touch Rev Control is adjustable with RPM Modules
- 110 millijoules per spark up to 15,000 RPM
- 470 primary voltage output to coil
- Accepts breaker points, amplifier and magnetic pickup trigger inputs
- Works on 12 - 18 volt electrical system
- Multiple sparks for 20° of crankshaft rotation
- Retard the ignition timing 1 degrees-3 degrees per pound of boost, maximum of 15 degrees, with dash mounted adjustable control knob
Details
| Color/Finish: | Red |
|---|---|
| Current Draw: | 1 Amp per 1,000 RPM |
| Primary Voltage: | 450-480 Volts |
| RPM Range: | 15.000 RPM with 14.4 Volts |
| Rev Limiter: | Yes |
| Secondary Voltage: | 45.000 |
| Spark Energy: | 105-115 mJ Per Spark |
| Spark Series Duration: | 20° Crankshaft Rotation |
| Voltage Required: | 12-18 Volts, Negative Ground |
