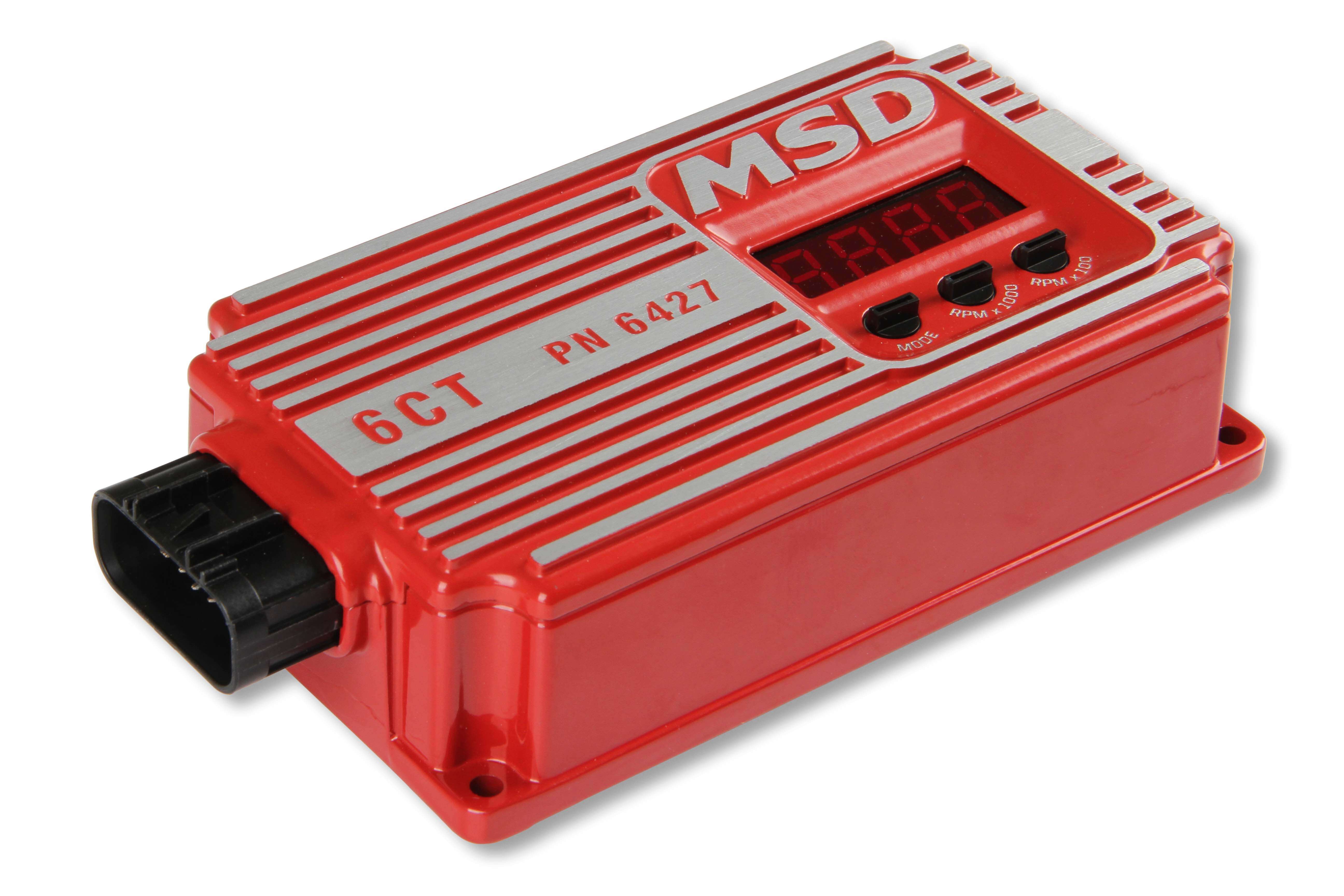

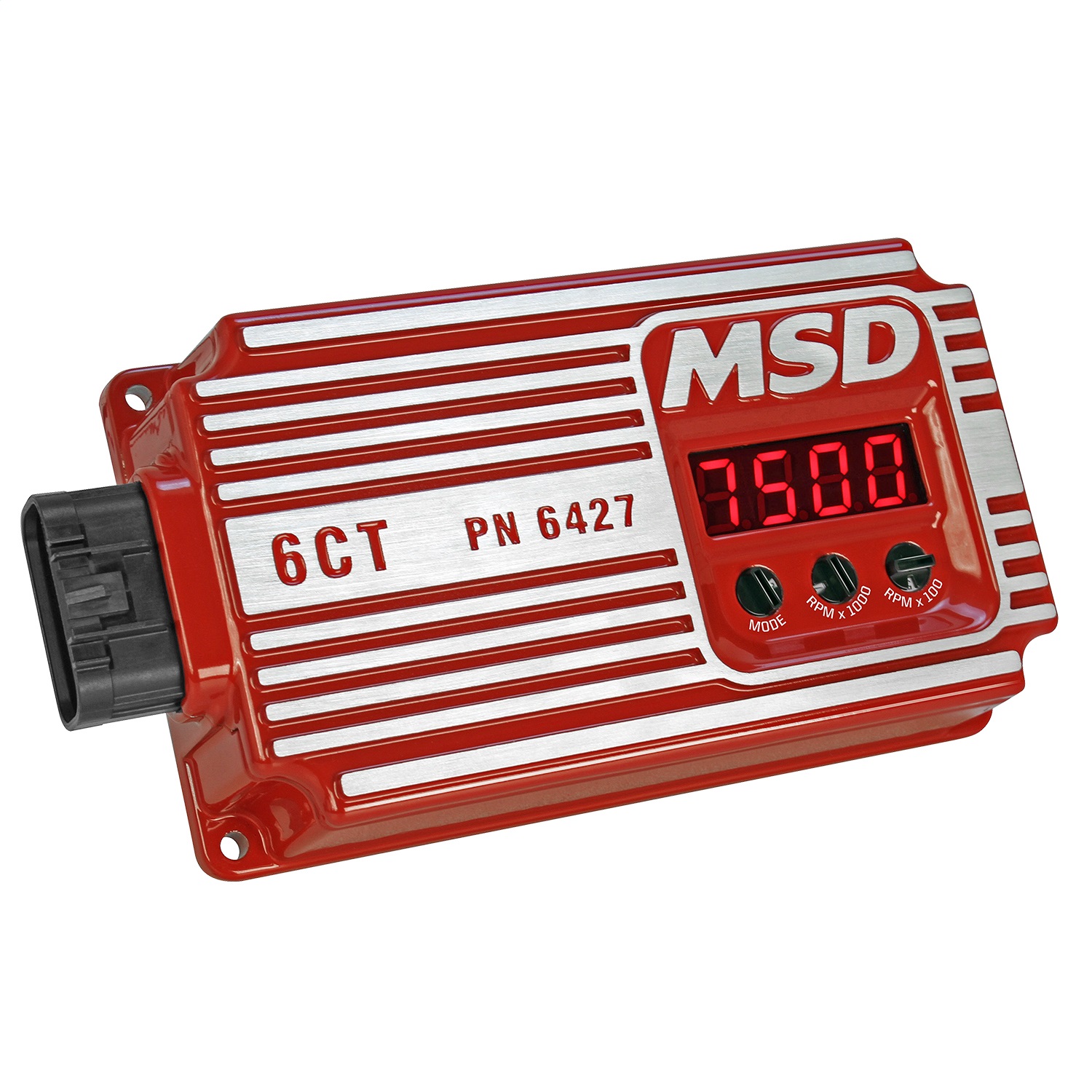

6CT Igntion Control Box, Circle Track
In Stock. Note: Shipping Date 1-May
Only 1 in stock.
€560.50 incl. vat
Plus shipping costs*Comparing
Notes
- MSD’s smoothest rev limiter yet! Won’t upset the chassis and easy on parts

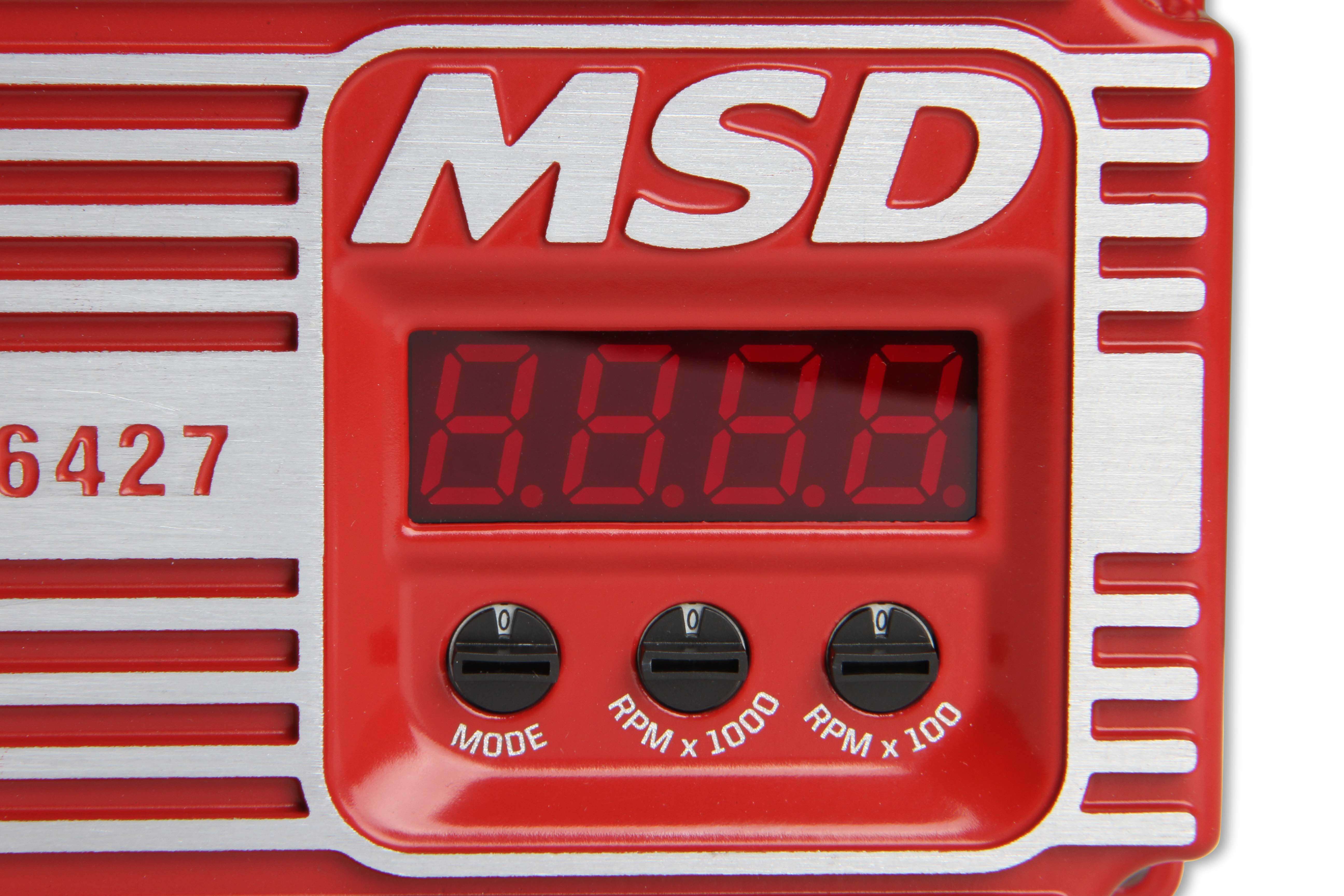

- Large, easy to read LED display

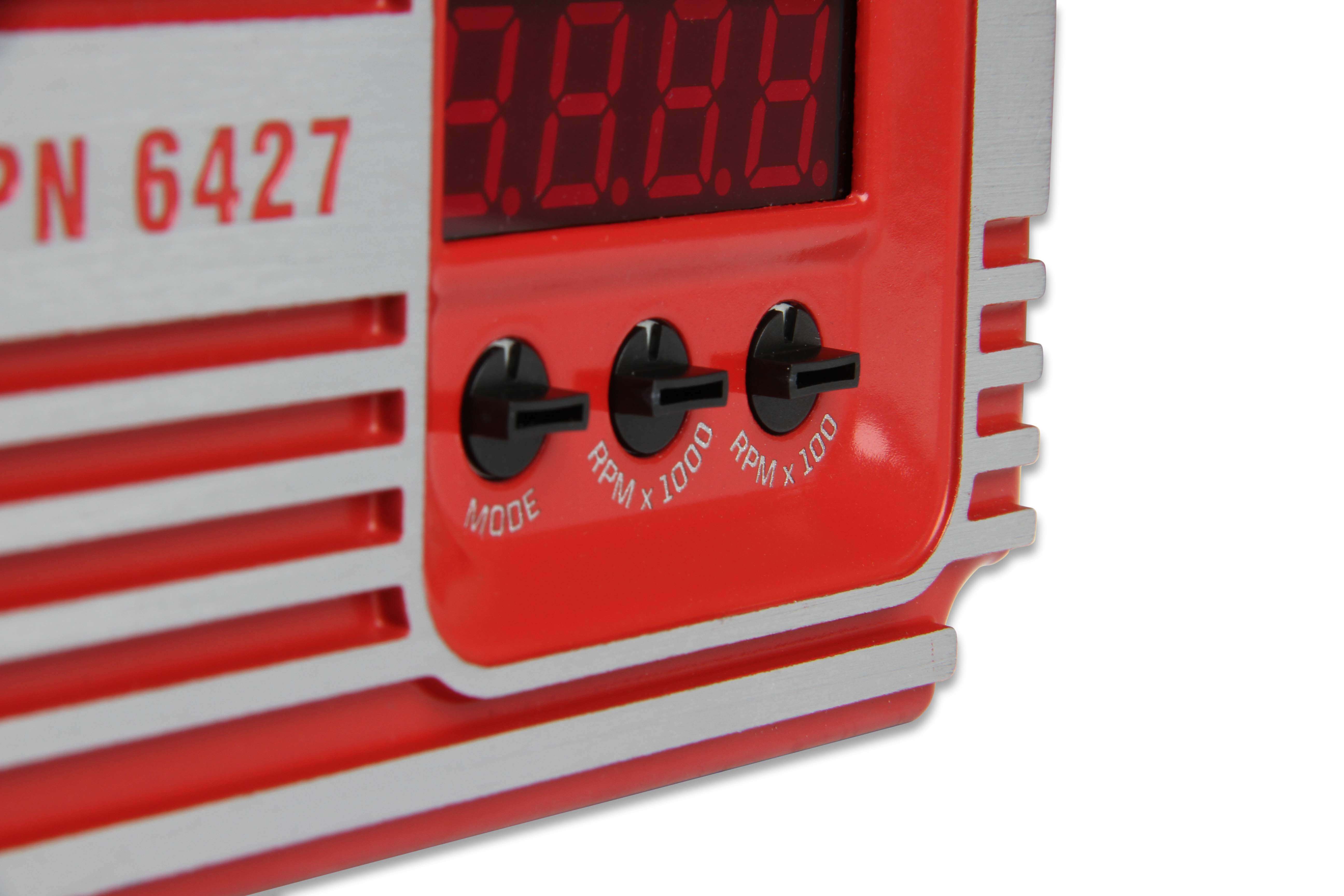

- Simple setup of features such as the rev limiter with three rotary dials on the face of the unit
- Built-in Start Retard adjustable in 0⁰, 10⁰ or 20⁰ increments for quick, easy starts and extend starter life
- LED displays rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
- Full delivery of spark energy down to 6 volts battery supply
- Highly efficient, low current draw for extended battery life

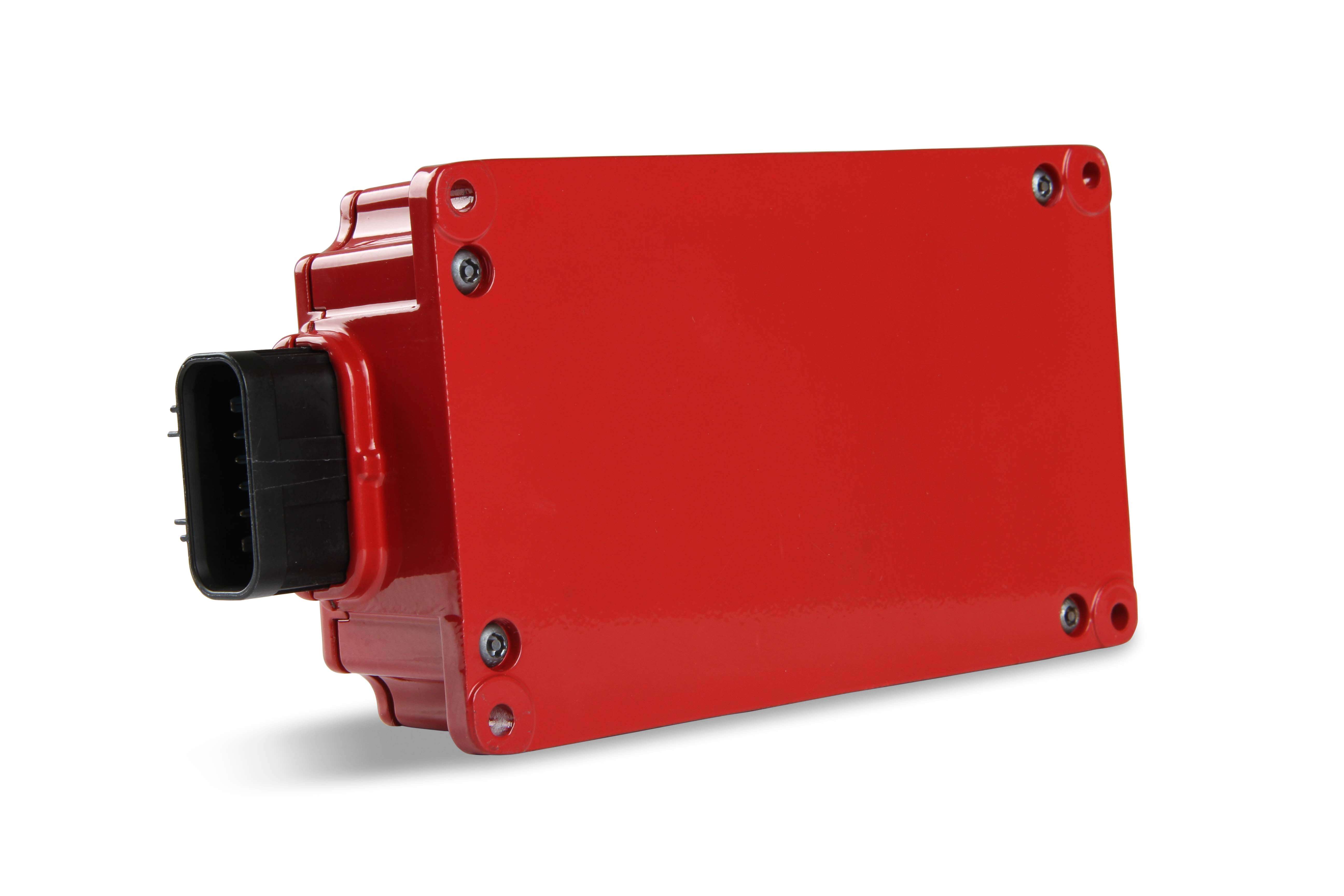

- Rugged built, epoxy filled housing protects the circuit board to stand up to demanding race conditions

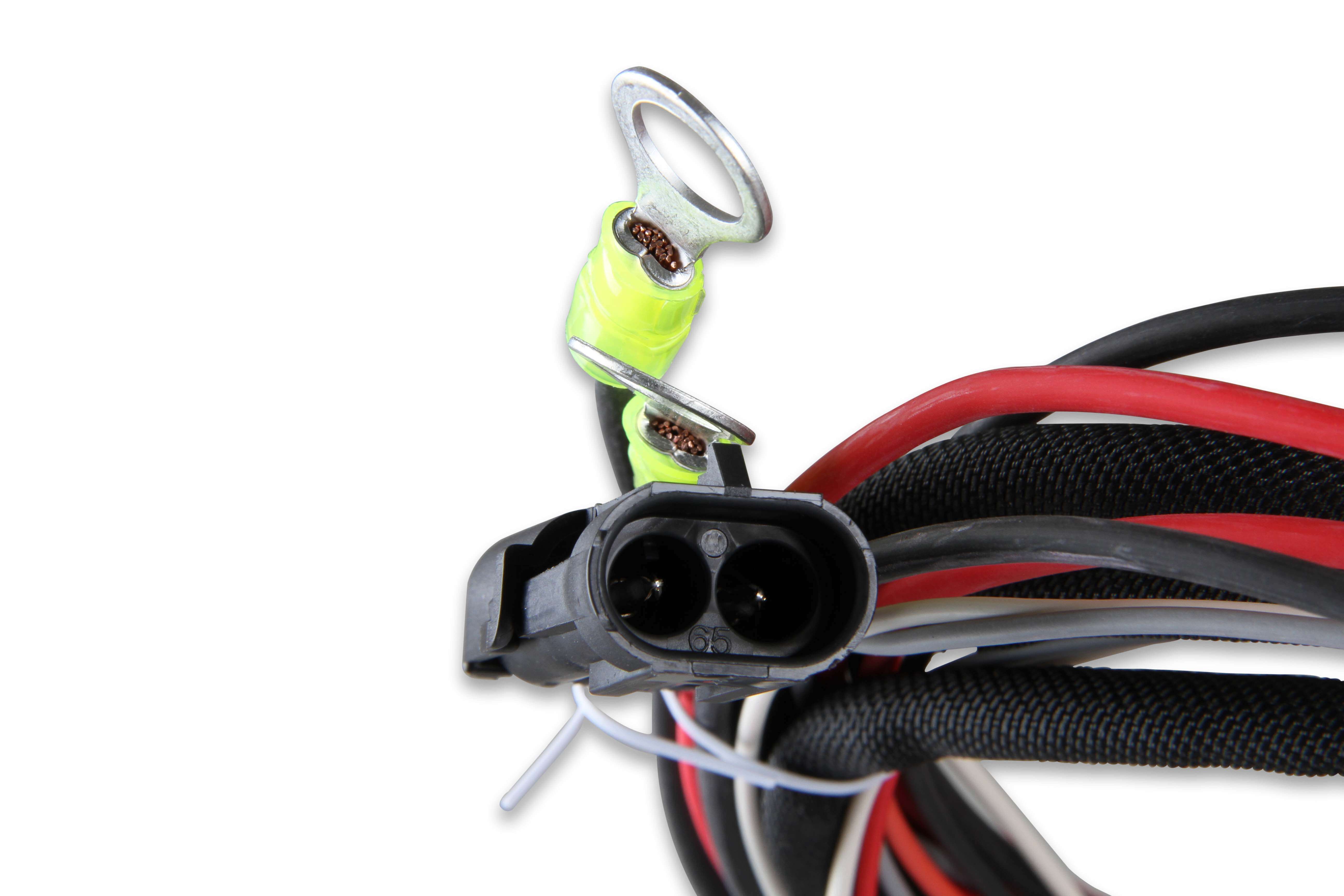

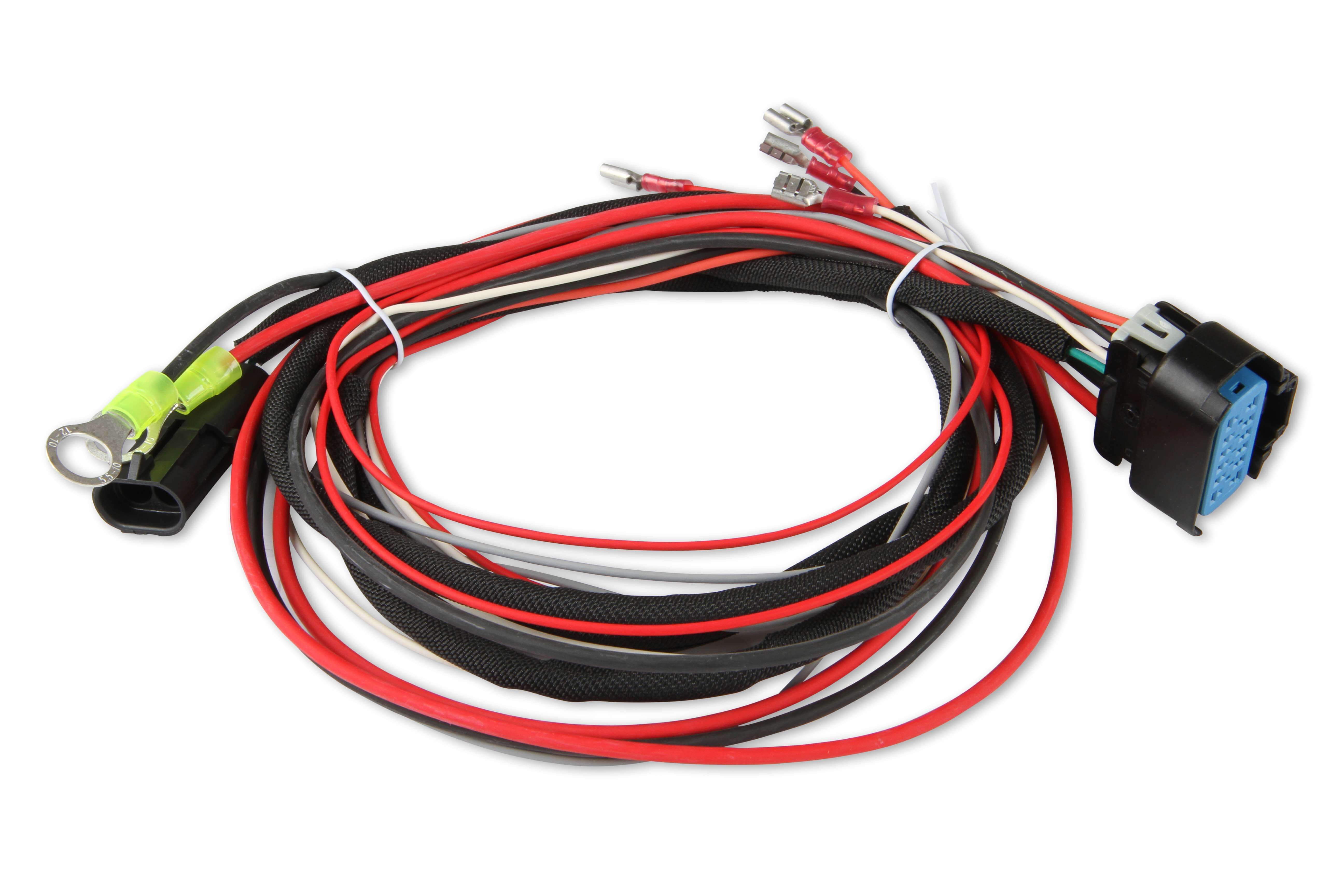

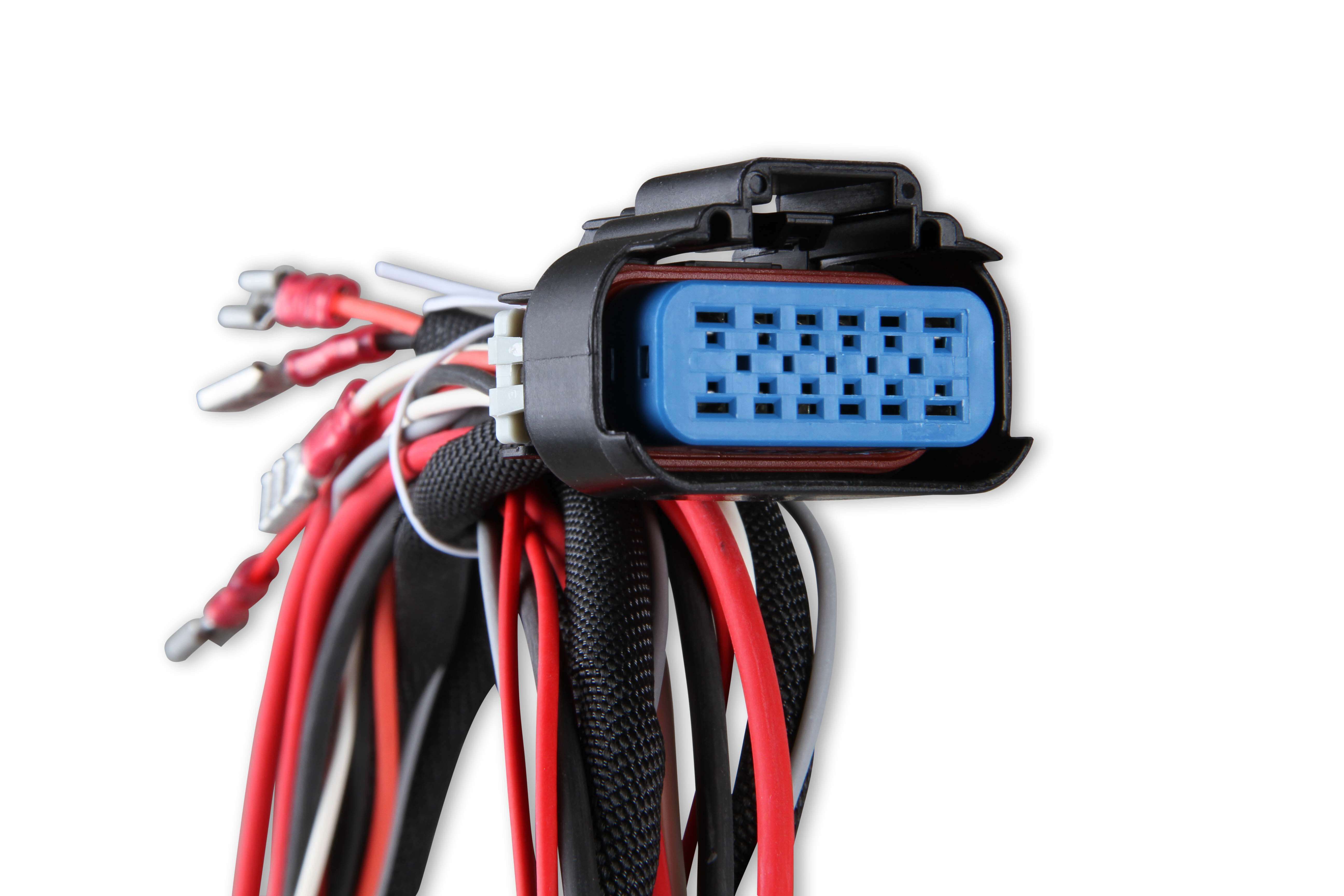

- Single plug-in connector for clean wiring
- Tamper proof screws to prevent modification of unit
- Records highest RPM the engine turned for last 20 minutes of run time
- Works on 4, 6 and 8 cylinder engines
- Reverse polarity and overheat protection provide ultimate reliability
Details
| Color/Finish: | Red |
|---|---|
| Current Draw: | .8 Amps per 1,000 RPM |
| Primary Voltage: | 535-550 Volts |
| RPM Range: | 12.000 RPM with 14.4 Volts |
| Rev Limiter: | Yes |
| Secondary Voltage: | 45.000 |
| Spark Energy: | 135-150 mJ Per Spark |
| Spark Series Duration: | 20° Crankshaft Rotation |
| Usage: | Circle Track |
| Voltage Required: | 6 to 18 Volts |
links
Login
- MSD’s smoothest rev limiter yet! Won’t upset the chassis and easy on parts
- Large, easy to read LED display
- Simple setup of features such as the rev limiter with three rotary dials on the face of the unit
- Built-in Start Retard adjustable in 0⁰, 10⁰ or 20⁰ increments for quick, easy starts and extend starter life
- LED displays rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
- Full delivery of spark energy down to 6 volts battery supply
- Highly efficient, low current draw for extended battery life
- Rugged built, epoxy filled housing protects the circuit board to stand up to demanding race conditions
- Single plug-in connector for clean wiring
- Tamper proof screws to prevent modification of unit
- Records highest RPM the engine turned for last 20 minutes of run time
- Works on 4, 6 and 8 cylinder engines
- Reverse polarity and overheat protection provide ultimate reliability
Details
| Color/Finish: | Red |
|---|---|
| Current Draw: | .8 Amps per 1,000 RPM |
| Primary Voltage: | 535-550 Volts |
| RPM Range: | 12.000 RPM with 14.4 Volts |
| Rev Limiter: | Yes |
| Secondary Voltage: | 45.000 |
| Spark Energy: | 135-150 mJ Per Spark |
| Spark Series Duration: | 20° Crankshaft Rotation |
| Usage: | Circle Track |
| Voltage Required: | 6 to 18 Volts |
links
Login

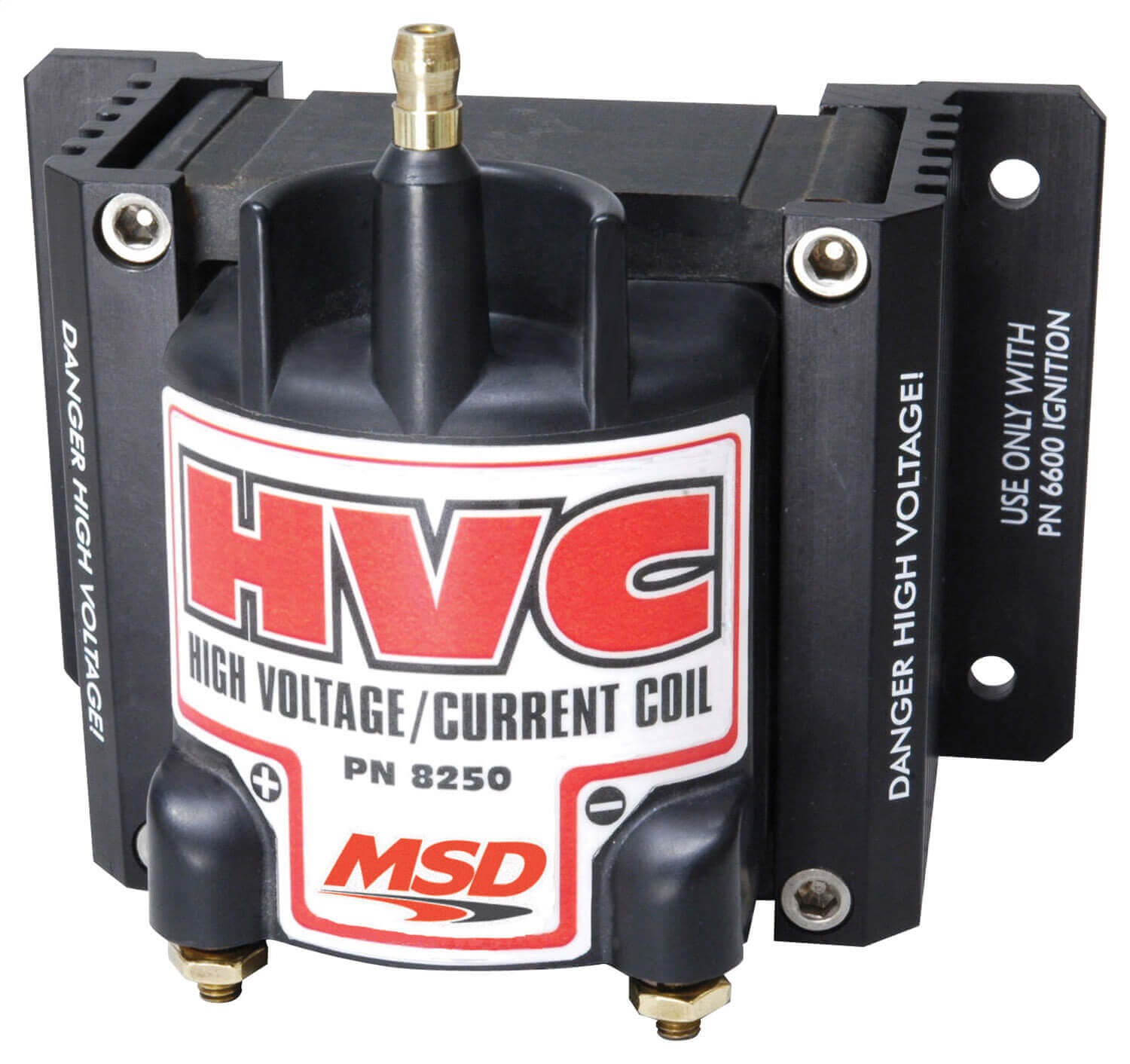

Accessory Items
