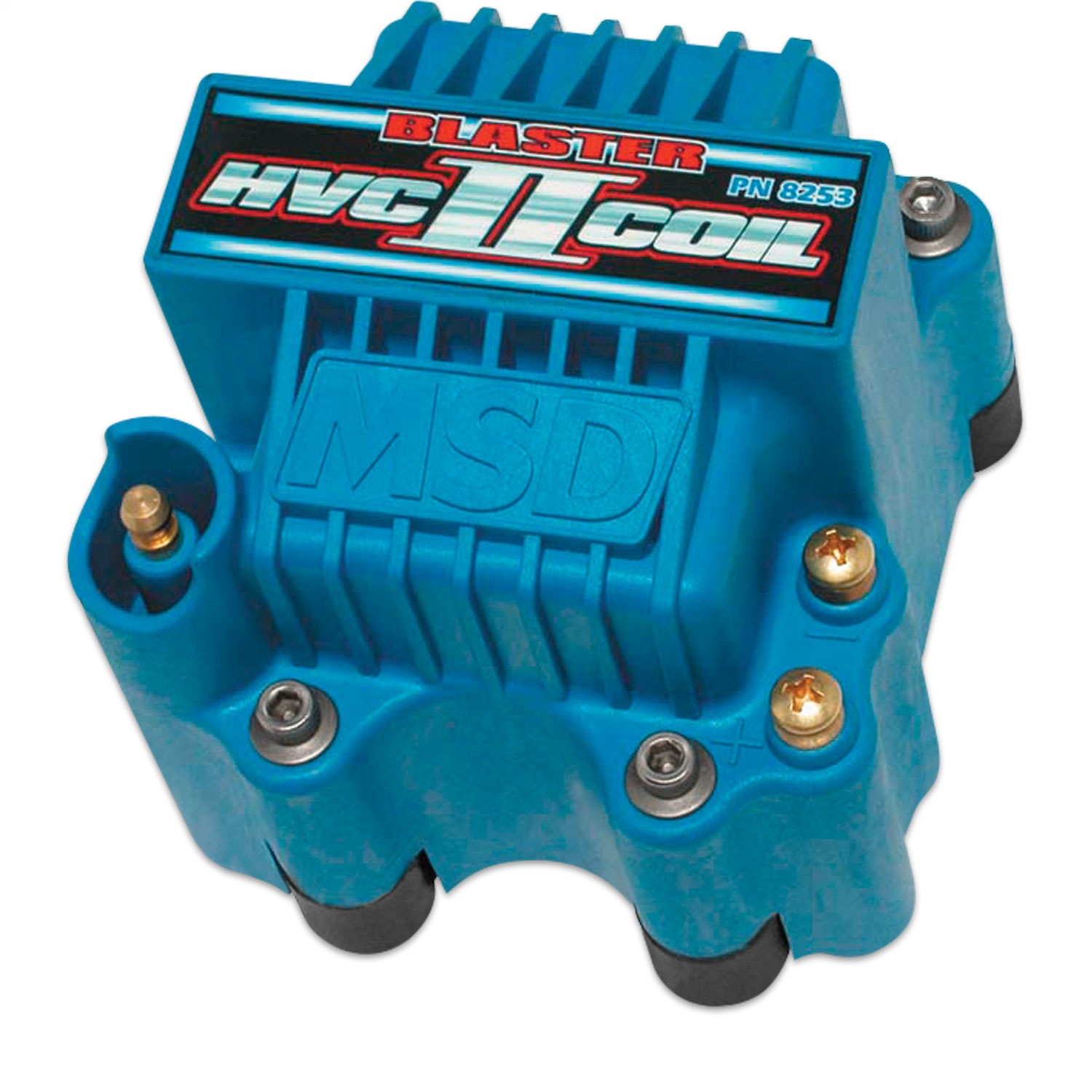

Coil, Blaster HVC II, 6 Series Ignitions
Only 1 in stock.
€394.50 incl. vat
Plus shipping costs*Comparing
Notes
The latest coil to be built entirely in-house at MSD is designed to be used with MSD 6 and SCI Series ignition Controls. This coil utilizes an iron u-core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from a special DuPont rynite material and wound specifically to produce the most current possible with incredible voltage and lightning quick rise time. The blue housing is also molded from high dielectric rynite material. The brass primary terminals are spaced far apart and the secondary tower is well protected for increased spark isolation. The housing is completely coated with an epoxy compound for vibration resistance and installs with sturdy vibration mounts.
- Designed for racing apps with 6-series ignition
- Low resistance and efficient winding design
- High voltage and current
- Housing molded from high dielectric rynite material
- Vibration mounts included
Details
| Inductance: | 3.5 mH |
|---|---|
| Maximum Voltage: | 44.000 |
| Peak Current: | 450 mA |
| Primary Resistance: | .16 OHMS |
| Secondary Resistance: | 630 OHMS |
| Spark Duration: | 450 uS |
| Turns Ratio: | 85:1 |
